Application:
Intel Core Industrial Embedded Computers with Front-access I/O Windows10/11Intel Core Industrial Embedded Computers with Front-access I/O Windows10/11Intel Core Industrial Embedded Computers with Front-access I/O Windows10/11Intel Core Industrial Embedded Computers with Front-access I/O Windows10/11

Intel Core Industrial Embedded Computers with Front-access I/O Windows10/11


● Intel® 12th Gen Core™ i CPU socket-type (LGA1700) (Intel® 13/14th Gen Core™ options)

● Intel® H610 PCH chipset

● RAM: 16GB, Supports 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, Max. 64GB

● Storage: 2*2.5" SATA3, 1*mSATA

● 1000 Mbps+2500Mbps dual-LAN

● OS: Windows 10/11 (Linux/Ubuntu/Redhat/Debian options)

● Fanless embedded system

● Optional extension system I/O module

● Optional 4G/5G network

● 9 ~ 36 VDC input power range

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

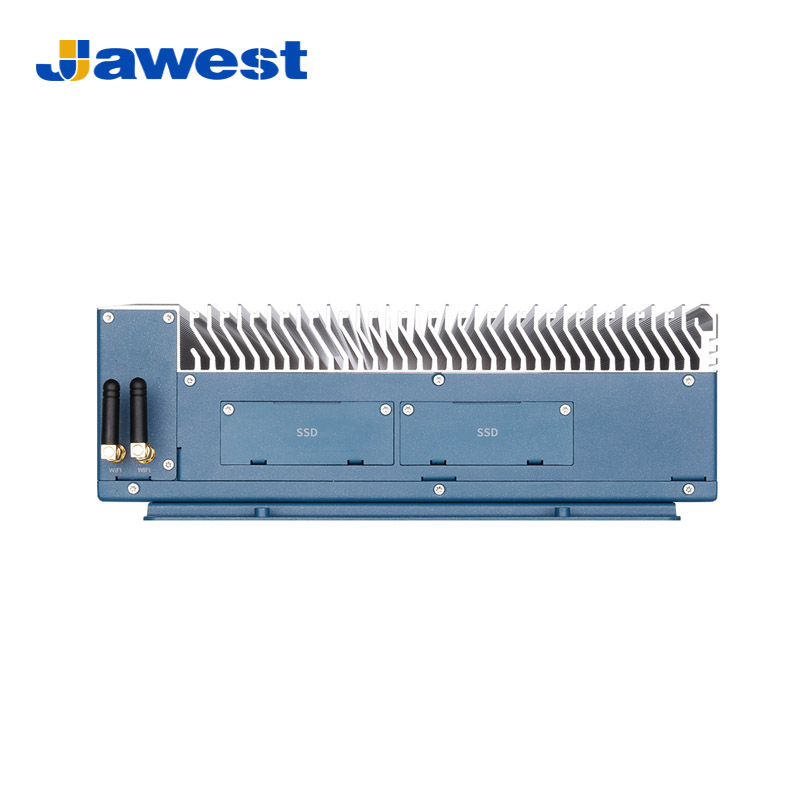

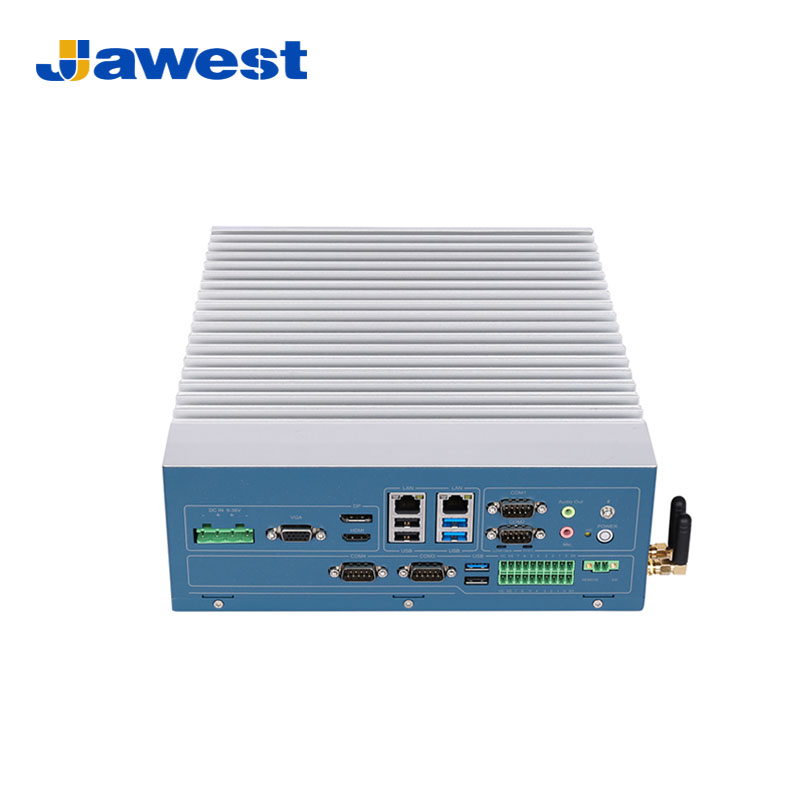

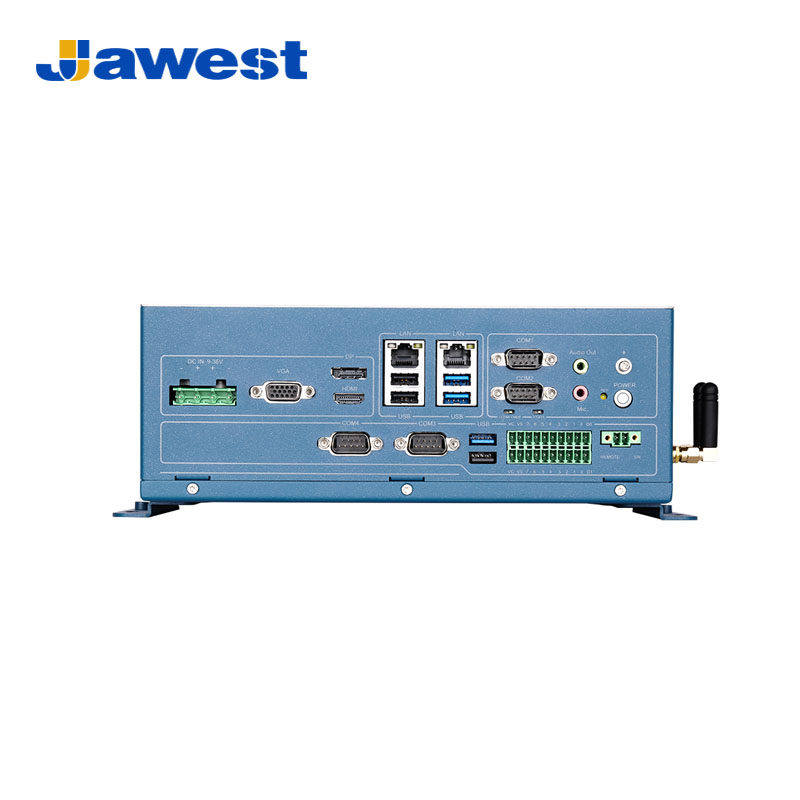

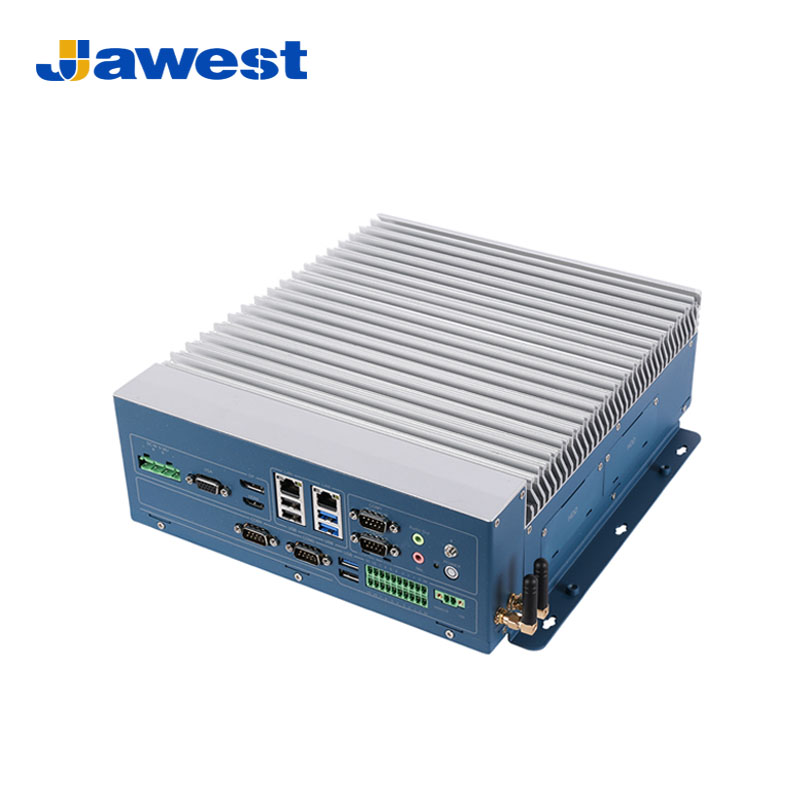

Intel Core Industrial Embedded Computers with Front-access I/O Windows10/11



Model: JWS05-WIPC


In the rapidly advancing world of industrial automation, there’s a growing demand for high-performance, reliable, and space-efficient embedded computing solutions. Intel Core Industrial Embedded Computers with front-access I/O (input/output) are at the forefront of this technological shift, providing unmatched performance and ease of access. Paired with the versatile and widely adopted Windows 10 and 11 operating systems, these machines are set to redefine industrial computing across a wide range of sectors. Including Factory Automation, Transportation and Logistics, Healthcare, Energy and Utilities, Smart Cities and Infrastructure, and more.


Overview of Industrial Embedded Computers

Industrial embedded computers are purpose-built systems designed to operate in harsh environments, ensuring continuous functionality in situations where traditional computers might fail. These devices are often employed in sectors such as manufacturing, logistics, transportation, and medical devices, where reliability, durability, and performance are paramount.



Intel’s Core processors power many of these systems, offering robust processing capabilities that handle the demands of modern industrial applications such as automation, control systems, data collection, and machine vision.


Key Features of Intel Core Embedded Systems with Front-Access I/O

Front-Access I/O Design: One of the standout features of these embedded systems is their front-access I/O ports. Traditionally, embedded computers have ports located at the rear, making maintenance or connectivity changes cumbersome, especially in space-restricted environments. Front-access I/O simplifies this by offering easy access to crucial ports such as USB, Ethernet, serial connections, and display interfaces. This design significantly reduces downtime, enhances cable management, and allows for quicker diagnostics and upgrades.



Intel Core Processors: The latest Intel Core processors, such as the 12th, 13th, and 14th generations, bring advanced performance and power efficiency to industrial applications. These processors offer multi-core architectures, hyper-threading, and Turbo Boost technologies, which are essential for multitasking and real-time processing in industrial environments. Whether it’s managing complex industrial control systems or processing large datasets from sensors and cameras, Intel Core processors provide the computational muscle needed.



Windows 10/11 Compatibility: The choice of operating system plays a critical role in embedded computing. Windows 10 and 11 offer a stable, secure, and user-friendly platform for running industrial applications. Windows 10 is particularly favored for its long-term support (LTS) versions, which provide extended security updates—a key consideration in industrial settings where downtime can be costly. Meanwhile, Windows 11 introduces a more modern interface, enhanced security features, and improved support for hybrid cloud computing and AI-driven workloads, making it ideal for next-gen industrial applications.



Durability and Ruggedness: These embedded computers are built to withstand extreme temperatures, humidity, dust, and vibrations commonly found in industrial environments. With industrial-grade components and robust enclosures, they ensure reliable operation over extended periods in challenging conditions.



Fanless Design: Many of these systems come with fanless designs, making them suitable for environments where dust or debris could be an issue. Fanless designs also reduce noise and power consumption, which can be critical in energy-conscious industrial setups.


Scalability and Customization: Intel Core industrial embedded computers are highly customizable to fit specific industrial needs. From expanded storage options to additional I/O ports and communication modules, these computers can be tailored to fit diverse applications. Additionally, their modular nature allows for easy upgrades as technological requirements evolve.









Product ModelStandard Version
JWS05-WIPC



System ProcessorCPUIntel® Alder lake-S 12th Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU
CPU Model: I3-12100, I5-12400, I7-12700, I9-12900 (Upgradeable to 13th/14th generation discrete CPU)
MemoryStandard 16GB;Support 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, max 64GB
Storage2*2.5” SATA3, up to 6Gbps transfer speeds; 1*Full-length mSATA with SATA3.0, supports up to 6Gbps transfer rate
ChipsetIntel® H610 PCH
Operating SystemWindows 10/11; Linux/Ubuntu/Redhat/Debian options



I/O PortsUSB3*USB3.0, 3*USB2.0, 4*USB2.0 pins (built-in)
Ethernet2* RJ45 Ethernet (1000 Mbps + 2500 Mbps)
Serial Port4*COM,  supports upgrade to 6*COM (2*RS232/422/485 COM1, COM2 switchable by BIOS setting; 4*RS232/485 switchable by jump cap)
Display Port1*DP, 1*HDMI, 1*VGA
GPIO16-channel opto-isolated (can be upgraded with 16-channel non-isolated GPIOs)
Wi-Fi/Bluetooth1*M.2 support Key-E interface WiFi/Bluetooth module
4G/5G1*M.2 support Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module
AudioRealtek ALC897 audio, 1*Line out and 1*MIC high fidelity audio, support 5.1 channels
Buttons/Indicators1* Power Button w/LED, 2-Pin Phoenix Terminal Remote Switch, AT-ATX DIP Switch, Clear Cmos DIP Switch



PowerPower SupplyDC in 9-36V
Power Consumption≤150W
Power AdapterDC 24V adapter (optional)



Reliability
Operating Temperature-20℃~70℃
Storage Temperature-30°C~80°C
Reliability TestingAnti-static design, anti-surge design



Mechanical
MaterialSGCC galvanized sheet, aluminum alloy
ColorSilver + Dark Blue
InstallationWall-mounted, desktop, rack-mounted
