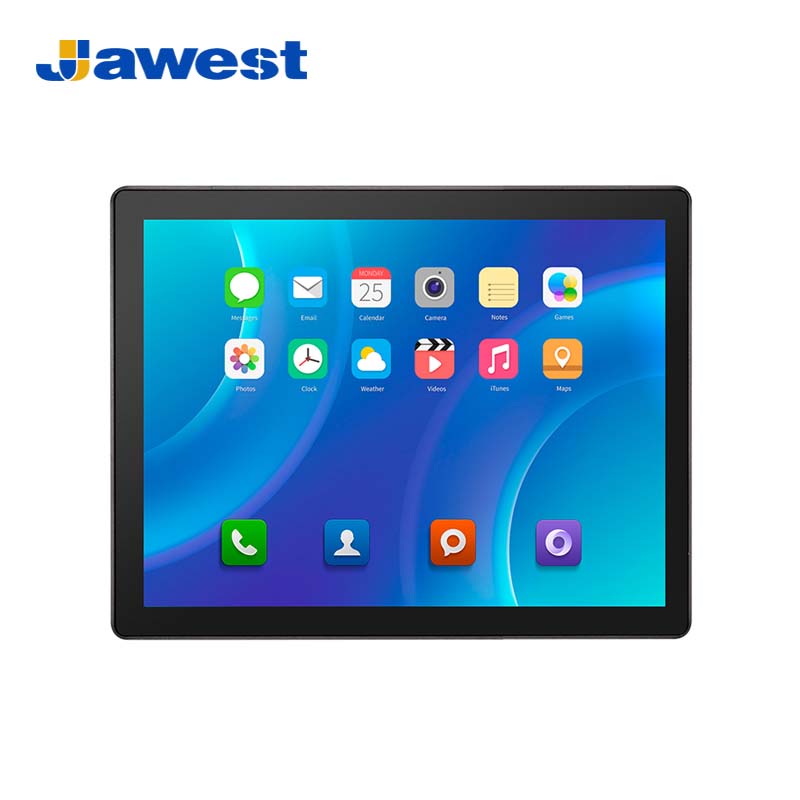

| Display Parameters | Size | 12" |
| Resolution | 1024*768 |
| Screen Ratio | 4:3 |
| Brightness | 500 nits (Optional high brightness) |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85°/85°/85°/85° (L/R/U/D) |
| Backlight type | LED backlight screen, service life ≥ 50000H |
| Touch Screen | Capacitive, Resistive, or Non-touch options |
|
|
|
|
|
|
|
|
|
| Motherboard Model Selection | JWS64
| JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) |
| SATA | / | / | / | / | Support | / | 1*SATA hard drive port |
| Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | Android 12 |
| / | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | Linux 5.10 |
| / | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | Ubuntu 20.04 | Ubuntu 20.04 |
| / | Debian 10.0 | Debian 10.0 | Debian 10.0 | Debian 11.0 | Debian 11.0 | Debian 11.0 |
|
|
|
|
|
|
|
|
|
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet |
| 4G | Optional. Based on the 4G module selection |
| 5G | / | / | / | / | / | / | Support M.2 5G module interface |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) |
|
|
|
|
|
|
|
|
|
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC |

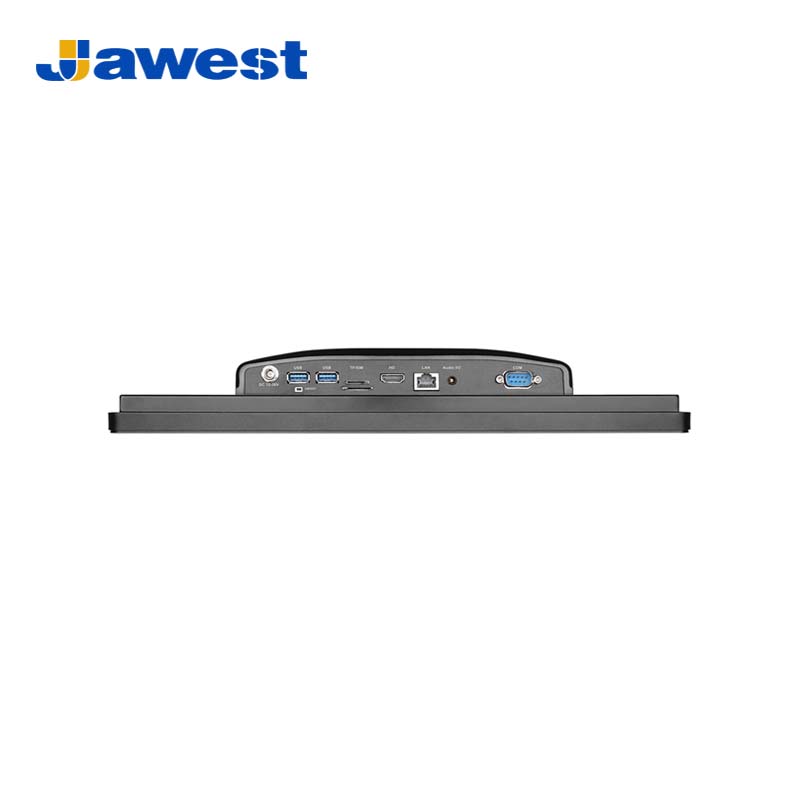

| I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
| HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K |
| LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN |
| DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 |
| COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole |
| TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot |
| WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole |
| Audio I/O | 1*3.5mm Earphone Jack |
| Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT |
| GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND |
| MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / |
| 1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | 1*DC |
| / | / | / | 1*RS232 | 1*RS232 | 1*RS232 | 1*RS232 |
| / | / | / | 1*RS485 | 1*RS485 | 1*RS485 | 1*RS485 |
| / | / | / | 1*TTL | 1*CAN | 1*CAN | 1*CAN |
| / | / | / | 3*GPIO | 3*GPIO | 3*GPIO | 3*GPIO |
| I/O Expansion | Support |
|
|
|
|
|
|
|
|
|
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A |
|
|
|
| Mechanical | Dimension | 294.07*232.6*65.5mm |
| Enclosure | Aluminum alloy housing |
| Cooling System | Fanless |
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.
|
|
|
|
| Product Reliability | Working Temp | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C |
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) |
| IP rating | Front IP65 |
