Application:
Flat Panel Industrial Monitor Touch Screen CE ApprovedFlat Panel Industrial Monitor Touch Screen CE ApprovedFlat Panel Industrial Monitor Touch Screen CE Approved

Flat Panel Industrial Monitor Touch Screen CE Approved


● Display screen size: 10.1" to 23.8" optional

● Aspect Ratio: 4:3, 5:4, 16:9 or 16:10 optional

● Jawest updated 2nd generation industrial monitor

● Working temperature: -10° ~ +60°C

● Front IP65 dustproof and waterproof

● 7*24 hours working in harsh environments

● Industrial-grade display drive boards

● CE, FCC, ISO9001 certificates approved

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Flat-panel industrial touch screen monitor with CE approved


    Jawest flat-panel industrial monitors and displays provide a constant data stream of information about all areas of your operation and become a crucial part of the industrial plant’s preventative maintenance system. All in all, Jawest industrial monitors leave your worker to be more efficient in doing their jobs.




    Jawest industrial monitor features


    Industrial Monitor

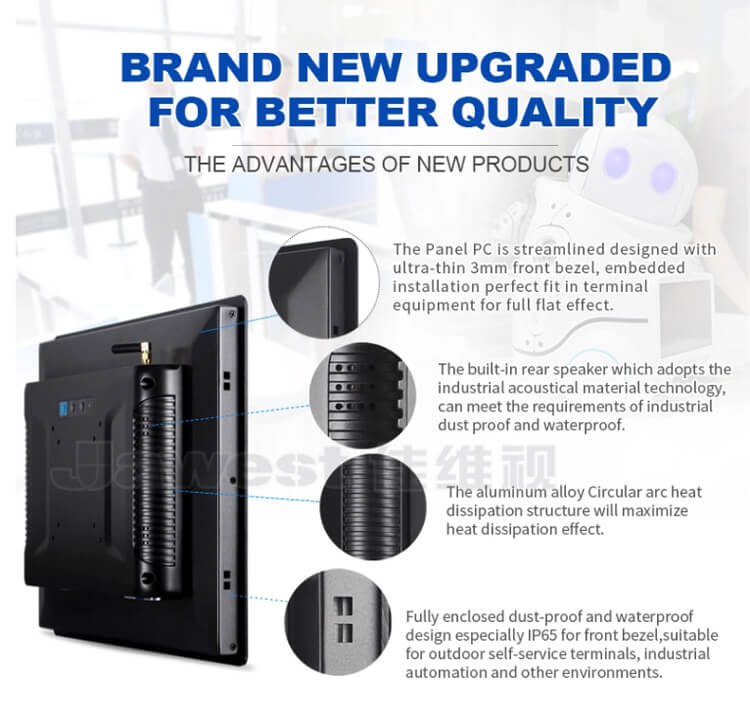

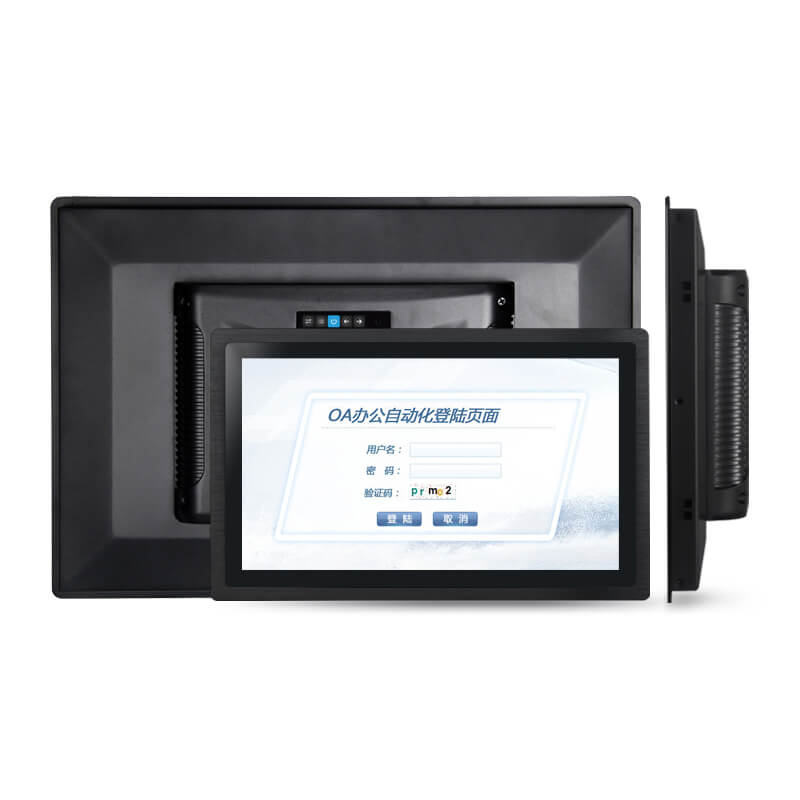

    Updated appearance design


    Jawest's 2nd-GEN industrial monitor with LCD touch screen, adopts circular chamfering, thin frame design,

    more fittable for operation. Besides, this kind of design style supports a variety of installation methods,

    such as desktop, VESA 75/100, wall-mounted, embedded.


    Flat Panel Industrial Monitor Touch Screen CE Approved

    Industrial grade LCD panel

    With standard resolution displays, supports high brightness 250nit-1500nit LCD backlights enhancements,

    direct sunlight readable. Anti-reflective coating, clearer viewing. Stable operation with long working life, more than 50,000 hours.

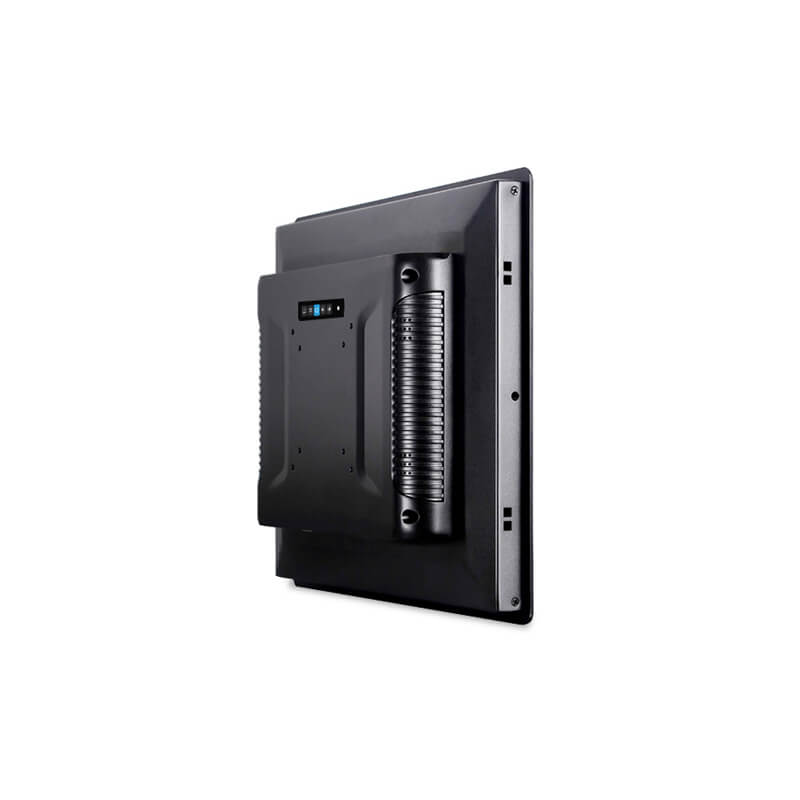

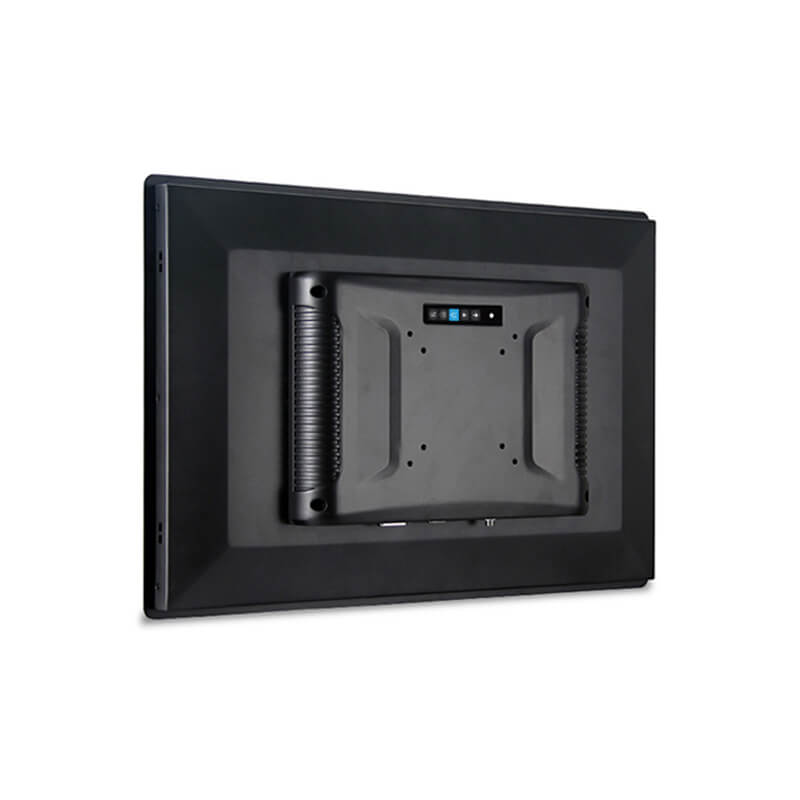

    Aluminum alloy material enclosure for heat dissipation design


    1. True flat screen and full-sealed bezel, waterproof & dustproof, inner electrical components well-protected, and prolong its service life

    2. Stable running in shock and vibration applications, as well as electromagnetic interference and radiation environment.


    Flat Panel Industrial Monitor Touch Screen CE Approved

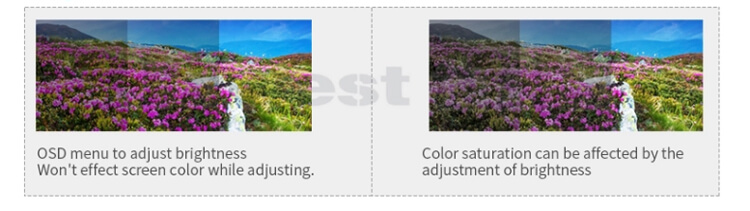

    Screen brightness

    The brightness of the backlight is adjustable directly through OSD.

    The screen color won't be affected while adjusting the brightness.

    Flat Panel Industrial Monitor Touch Screen CE Approved

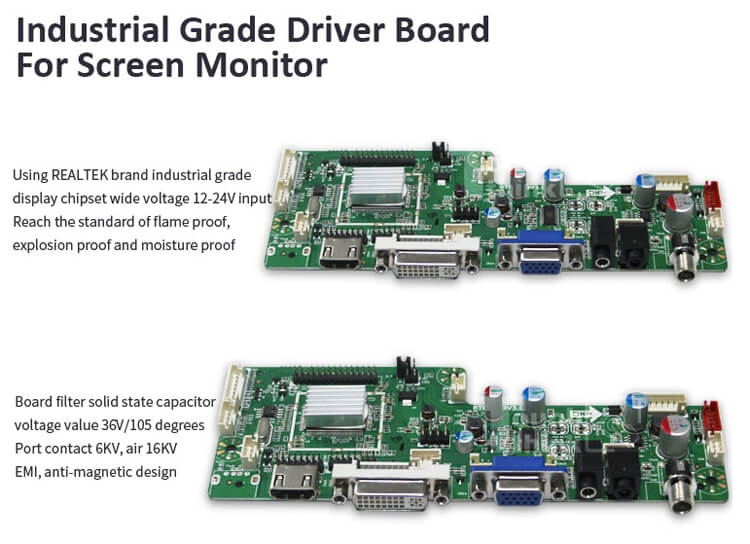

    Motherboard design


    Jawest adopting the REALTEK brand industrial-grade display chip and industrial-grade

    components for the monitor's perfect performance. Mainboard filtering solid cap withstand voltage 36V /105°.


    Flat Panel Industrial Monitor Touch Screen CE Approved

    Anti-static

    Meet the industrial standard touch 4KV (the highest customizable 6KV).

    Meet the industry standard air 8KV (the highest customizable 16KV ).

    High-level anti-static can greatly reduce the failure rate of the machine.


    Flat Panel Industrial Monitor Touch Screen CE Approved


    FAQ.

    1. What are the advantages of an LCD display screen?

    -  LCD display with very thin size, which is suitable for very limited space.

    -  Industrial monitor with an LCD display produces no radiation, which is good for health.

    -  LCD monitors have no blinking phenomenon, this is good for the operator's eyes.

    -  LCD screen display with lower energy consumption than CRT display, saving more energy.

    - The LCD touch screen monitor is a completely flat panel, with no visual distortion.


    2. Do you have different sizes of industrial monitor screens?

    -  Yes, we support a large range of different sizes of industrial monitor display screens, from 10.1 inch ~ 21.5 inch for this model.


    3. What is the MOQ of your industrial monitor?

    -  The MOQ of our industrial monitor is 1 piece.


    4. How long will I get your products?

    -  For the normal models, after receiving your payment, we will arrange to ship the industrial monitor out after 3~7 working days; While for ODM models, we will arrange to ship the industrial monitor out after 10~15 working days after receiving payment.




  • 3mm bezel aluminum touch monitor datasheet
    Size10.1 inch to 23.8 inch
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio16:9
    Resolution1366*768
    Contrast800:1
    Luminance250nit-1000nit
    Response time6.5ms
    Active Area (mm)227*131
    Display colors16.7M(8-bit)
    View angle80/80/80/80
    Touch Screen10-point capacitive touch screen

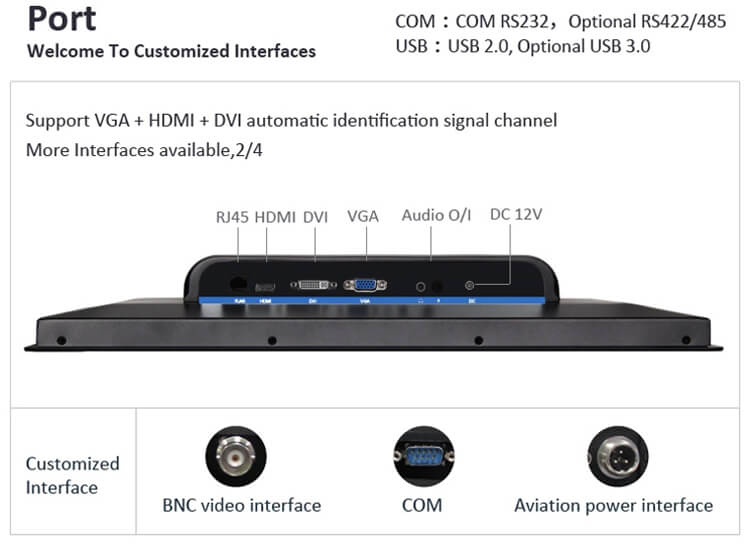

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C
    Storage Temperature-40°C-85°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional

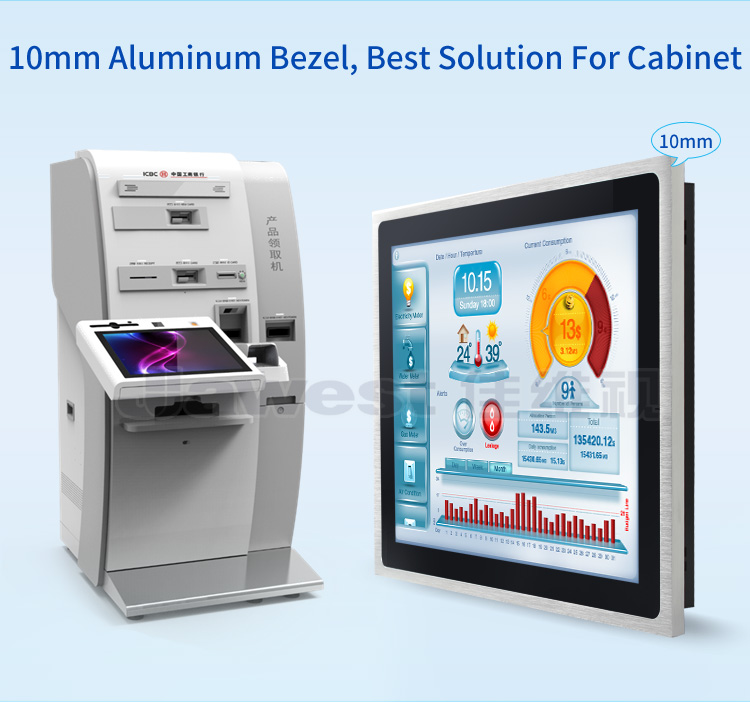

    Bezel thickness3mm bezel, 10mm bezel(optional)
    IP ratingIP65 for front Panel
    InstallationVESA 75/100, Embedded, Wall Mount, Desktop optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
