Application:

Rugged Fanless Embedded Computers Small Size

● Industrial-grade Android-based motherboard

● Provide SDK for your secondary development

● Small size, saves space, easy to install, and maintain

● Full-enclosed aluminum alloy material, sturdy and durable

● Anti-static and anti-electromagnetic interference design

● Popular interface design supports interfaces custom

● Strong compatibility, easy to adapt to various industrial environments

● 24/7 operation, low-power chipset, saving energy

Appearance of the color

Black

Silver

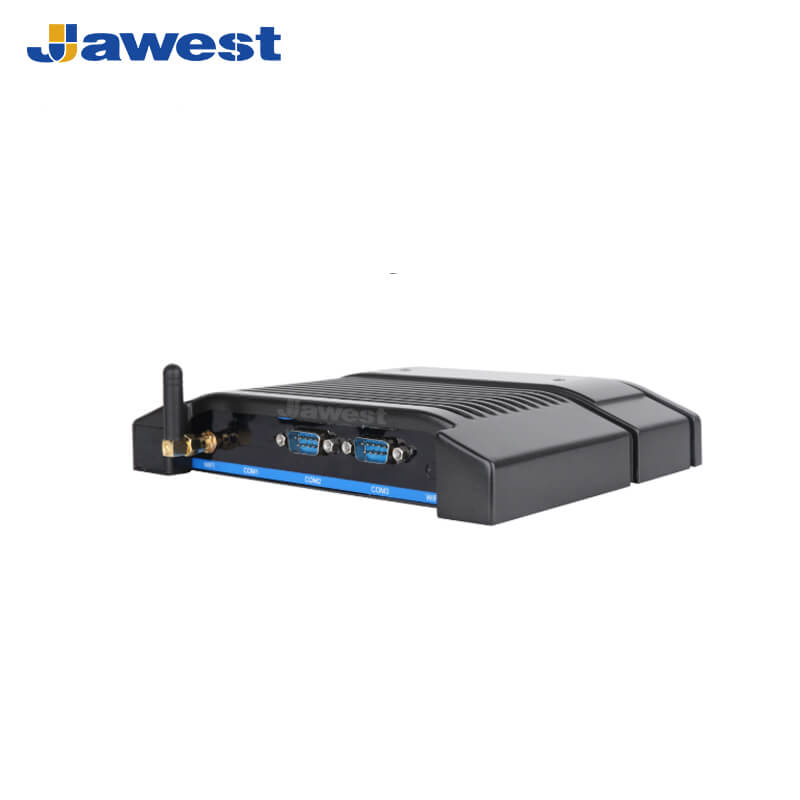

Industrial Fanless Embedded Computers

Jawest industrial mini PC designed with fanless structure and industrial or military grade electronics components for reliable performance in harsh conditions. They are suitable to apply to industrial automation, process control, equipment manufacturing, warehouse automation, forklift, and other vehicle installations.

Industrial Fanless Embedded Computers Datasheet
CPU	Allwinner A64 Cortex-A53, quad-core 64 bit
EMMC	8G EMMC (16G/32G EMMC optional)
Inner Memory	1G/2G DDR3 (4G DDR3 optional)
Display Chip	Mali400MP2 dual-core
Operating System	Android 6.0
Graphics Card	Intel HD Graphics
WIFI	Dual-frequency 2.4/5G
Bluetooth and GPS / MIC / RTC / Wake on LAN / Speaker / Plug-and-play	Yes
USB interface	2USB HOST; 1MICRO USB(OTG)
Size	210 mm (long) x 214 mm (high) x 59 mm (thick)
Weight	5KG
Material	Aluminum Alloy Material
Serial ports	Two-channel 232 serial ports, 422/485 optional
Operating Temperature	-20 ~ +65°C ( wide temperature operation is customizable )
Storage Temperature	-40 ~ +80°C
Environmental Humidity	< 80% ( full waterproof is customizable)
Color	Black (customizable)

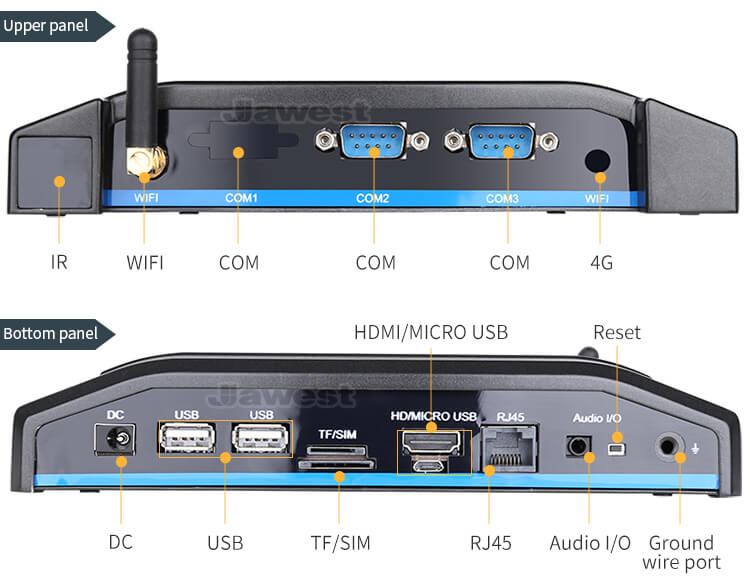

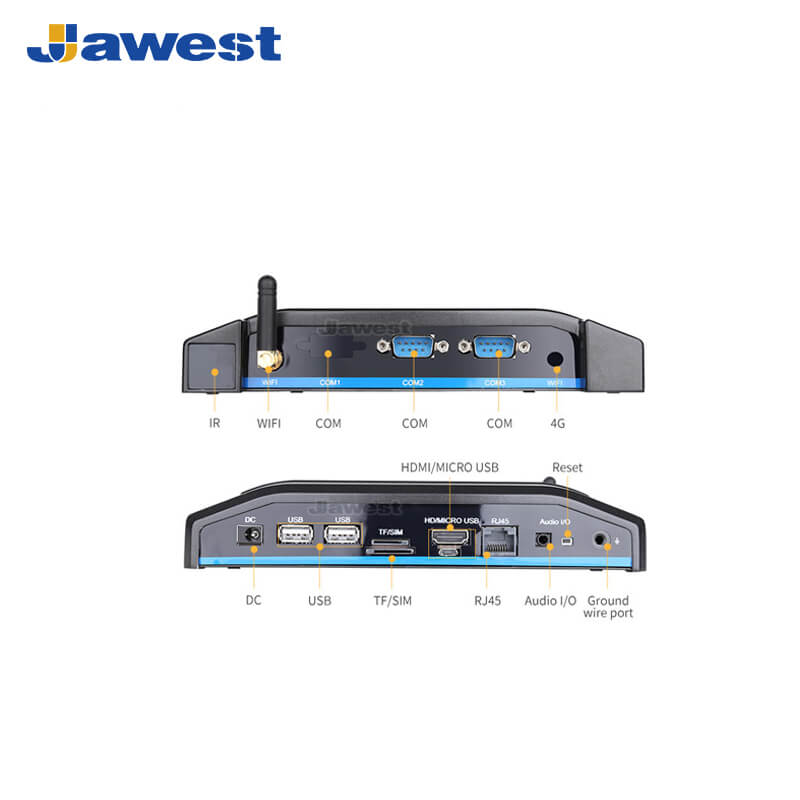

Interfaces:	COM6, Network port1, audio output1, VGA1, HDMI 1, WiFi interface1, DC power interface1, RJ451 Special interface can be customized.
Installation method	Embedded mount
Power supply	100-240V, 50-60 Hz
Power Consumption	≤60W
