Industrial Touch Screen Panel PCs Wholesale Price 19.1 Inch Fanless PCAP Or Resistive Touch ScreenIndustrial Touch Screen Panel PCs Wholesale Price 19.1 Inch Fanless PCAP Or Resistive Touch ScreenIndustrial Touch Screen Panel PCs Wholesale Price 19.1 Inch Fanless PCAP Or Resistive Touch ScreenIndustrial Touch Screen Panel PCs Wholesale Price 19.1 Inch Fanless PCAP Or Resistive Touch Screen

Industrial Touch Screen Panel PCs Wholesale Price 19.1 Inch Fanless PCAP Or Resistive Touch Screen


Model: JWS191-W2

● Display size: 19.1 inch.

● Resolution: 1440*900; Aspect Ratio: 16:10.

● Luminance: 250 nits ~1500 nits optional.

● Touch screen: capacitive, resistive, or Non-touch (mouse control).

● All-in-one design, rugged Aluminum alloy enclosure.

● The front panel is only 3mm, suitable for embedded installation.

● Mainstream interface design, supporting customizable interface.

● High compatibility and adaptability to various industrial environments.

● Low-power chipset to save energy.

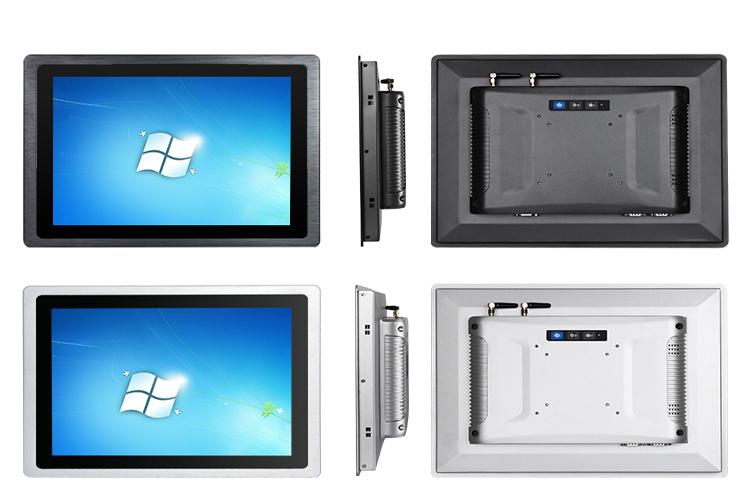

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 19.1 Inch Industrial Touch Screen Panel PCs with Wholesale Best Price


    Model: JWS191-W2


    This industrial-grade touchscreen computer is designed based on X86 architecture, fitted with Intel J1900 quad-core CPU, fast processing speed, and industrial-grade motherboard, making it suitable in kinds of harsh industrial conditions.


    Powerful Jawest Panel PC

    - The JWS191-W2 is a powerful and flexible HMI industrial panel PC engineered for industrial workstations, outdoor kiosks, or point-of-sale, medical equipment operations.


    - The panel PC features Intel Core i3, i5, and i7 processors supporting 4/8/16/32GB of DDR3L, and up to 256G eMMC memory of SSD for data processing in the toughest environments.


    - Rich I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.




    Industrial Touch Screen Panel PCs Wholesale Price 19.1 Inch

    Industrial Touch Screen Panel PCs Wholesale Price 19.1 Inch

    Industrial Touch Screen Panel PCs Wholesale Price 19.1 Inch

    Industrial Touch Screen Panel PCs Wholesale Price 19.1 Inch






  • Display Parameters
    Size19.1"
    Resolution1440*900
    Screen Ratio16:10
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle80°/80°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension486*332*63mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless

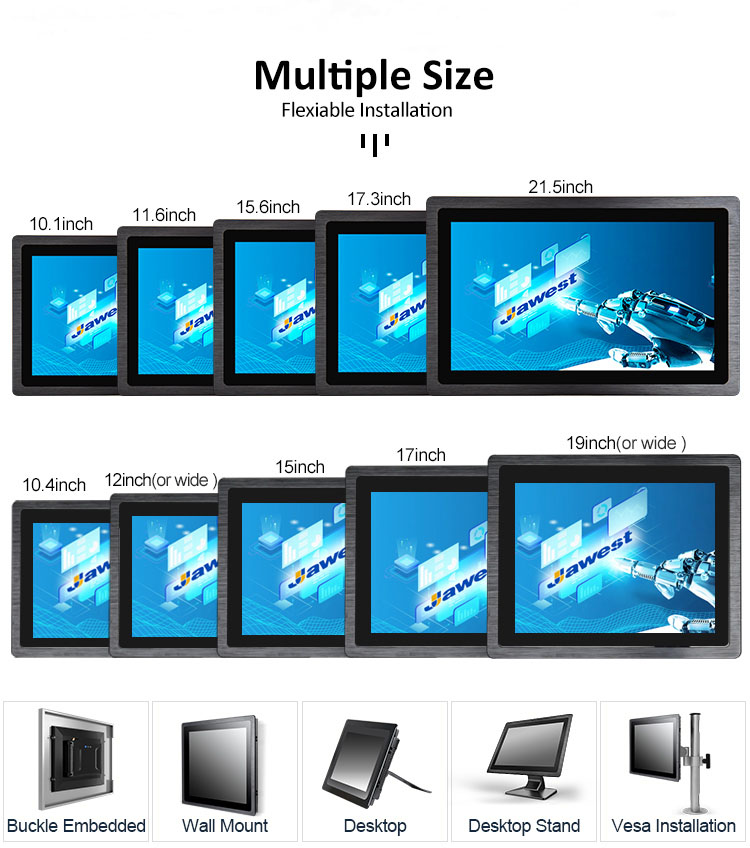

    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)

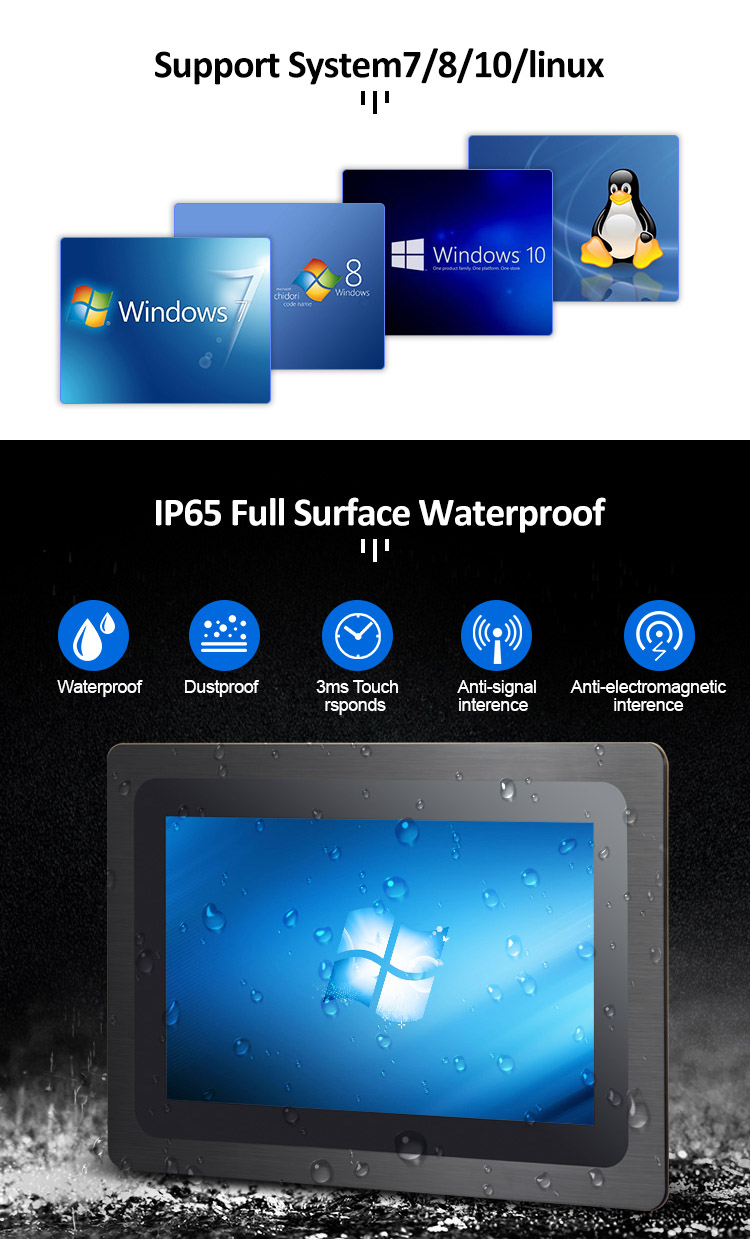

    IP ratingFront IP65
