Application:
​​8 Inch Android Panel PC For Hospital Bedside Terminal Use​​8 Inch Android Panel PC For Hospital Bedside Terminal Use​​8 Inch Android Panel PC For Hospital Bedside Terminal Use​​8 Inch Android Panel PC For Hospital Bedside Terminal Use​​8 Inch Android Panel PC For Hospital Bedside Terminal Use

​​8 Inch Android Panel PC For Hospital Bedside Terminal Use


Model: JWS080-A4

● Display size: 8 inch.

● Front IP65-rated dustproof and waterproof.

● Default with JWS-A64, Cortex-A53, Quad-core CPU, 1.5GHz.

● Pre-installed with the Android 6.0 operating system.

● Multiple installation: desktop / wall-mounted / embedded / VESA 75 / VESA 100.

● Ultra-sensitive capacitive touch screen technology, mouse control are available.

● Support multi-functional modules customization (RFID/NFC/IR sensor).

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

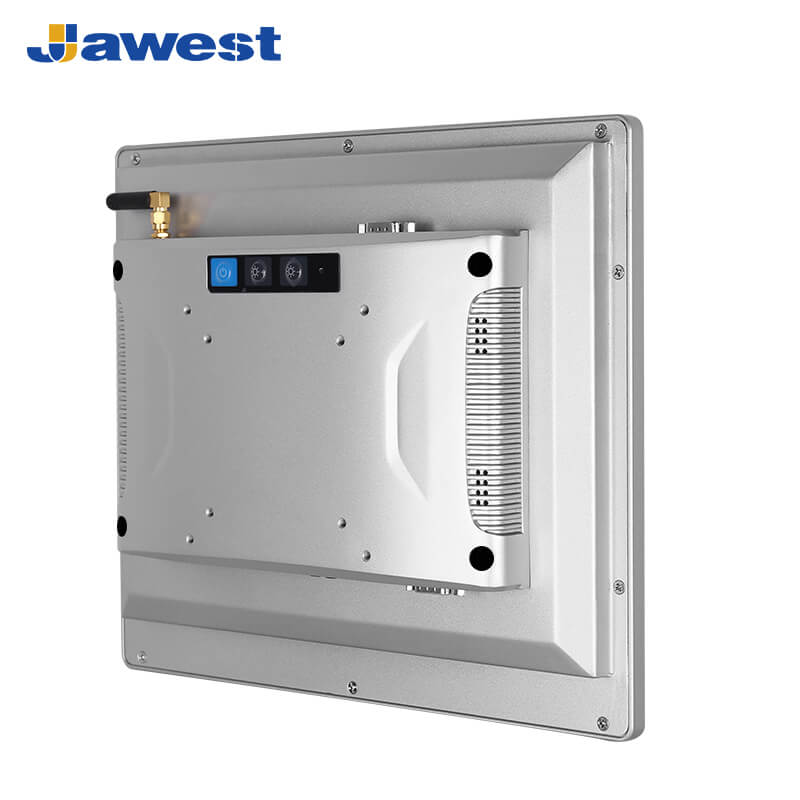

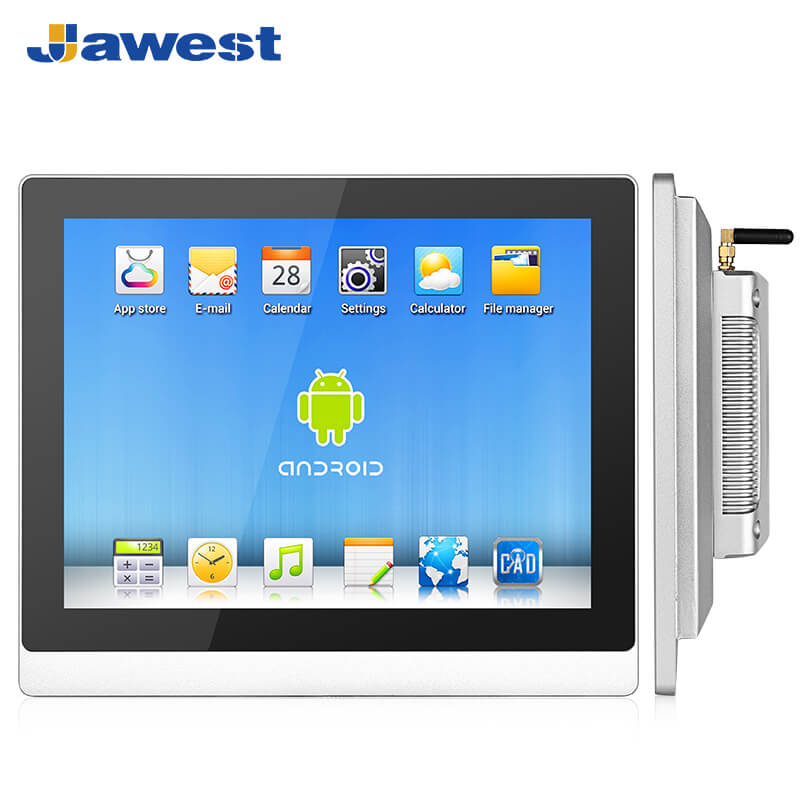

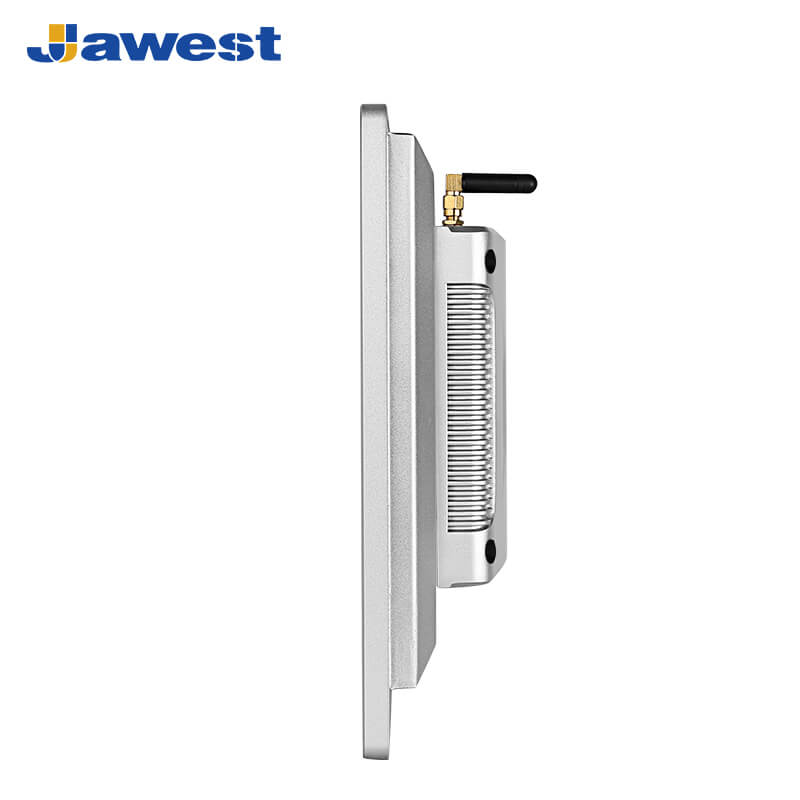

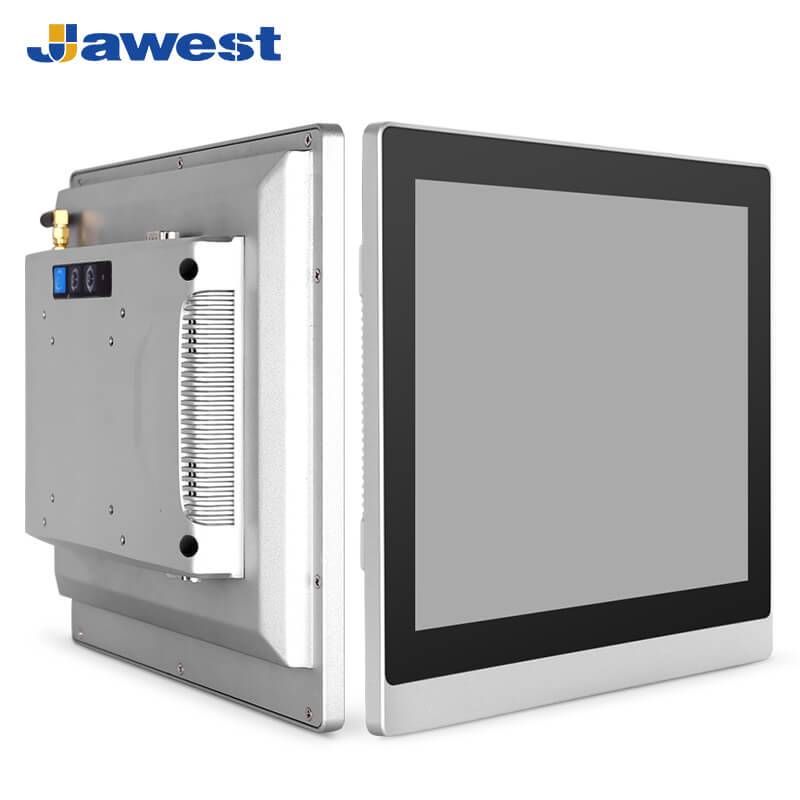

  • This 8-inch small-size Android tablet PC with rugged industrial-grade quality is widely used in smart hospitals, the specific applications including hospital bedside service terminals, medical carts, nurse workstations, and kinds of medical instruments, to realize the control and display functions.


    Product Features


    1. The display panel is IP65 dustproof and has waterproof protection.

    2. The fully-enclosed front panel is designed with a truly flat panel to avoid dust and water drops into the PC.

    3. Efficient cooling low carbon energy saving

    4. 365 * 24H uninterrupted operation, to adapt to any harsh environment, with low power architecture design, the whole power consumption ≤ 45w.

    5. All aluminum alloy material drawing process

    6. Aluminum alloy with good electrical conductivity, thermal conductivity, and corrosion resistance.




  • 10mm bezel aluminum Android Panel PC datasheet
    Size8 inch
    Display
    Panel TypeIndustrial LCD panel A/A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast800:1
    Luminance250nit-1000nit
    Response time5ms
    Active Area (mm)227*131
    Display colors16.7M(8-bit)
    View angle80/80/80/80°, (Full viewing angle 178° available)
    PC Configuration
    CPUJWS-A64 Quad-core ARM Cortex-A53 1.5GHz, Android 6.0 (Android 5.1/7.1 available)
    GPUMail-400 533MHz
    Inner memory2G DDR3 RAM
    StorageeMMC 8G,can expandable to 32G by TF/SD card
    WIFI Built-in wifi module, 802.11a/b/g/n
    BluetoothBuilt-in Bluetooth module
    Functions requirementsBuilt-in 3G/4G/GPS/USB Camera (optional)
    Touch Screen10-point capacitive touch screen / Mouse control
    Operating SystemPre-installed Android 4.4 OS
    Support multi-languageEnglish,French,Spanish,Portuguese,Russian,Arabic,Chinese,etc
    Google play serviceSupport Google play service
    Pre-installed App Google market, Email, Gmail, Google talk

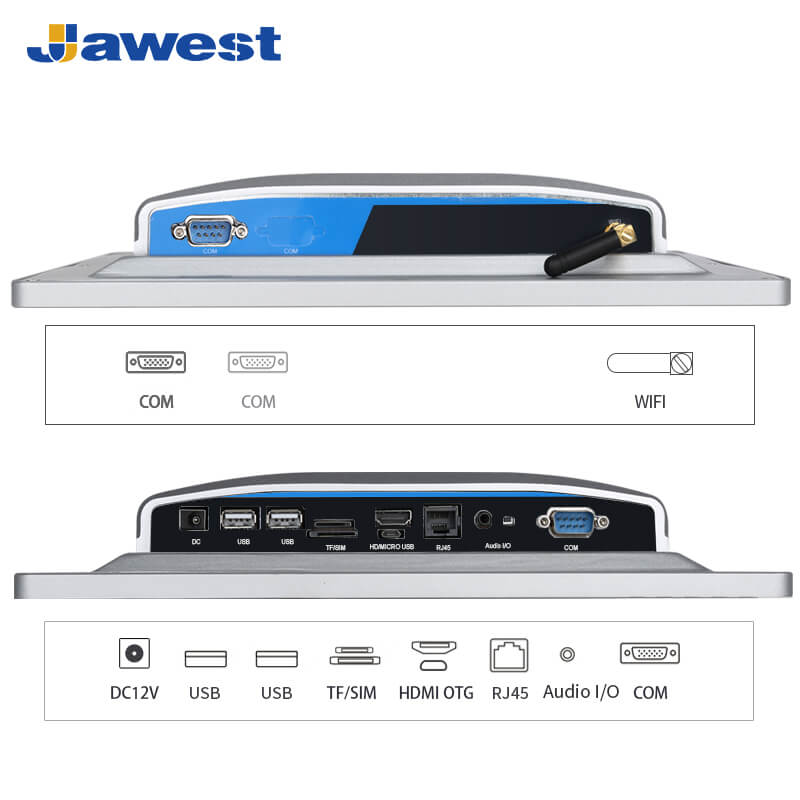

    I/O ports

    1*12V ATX input, 1*SIM card slot, 1*TF/SD card slot, 1*HDMI, 2*USB port, 1*RJ-45

    network interface, 1*3.5mm Audio output interface, 2*com (Serial port), 1*mini USB

    port for re-flash/upgrading firmware

    MaterialAluminum alloy enclosure
    Front bezel thickness10mm bezel
    IP ratingIP65 for the front panel
    ColorSilver / black, other colors can be customized
    Installation methodVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackagingEPE+Carton  (wooden crate for mass order)
