● Display size: 11.6-inch.
● High level anti-static.
● High quality industrial LCD panel.
● Working temperature:-10-60°C.
● Industrial grade display chip.

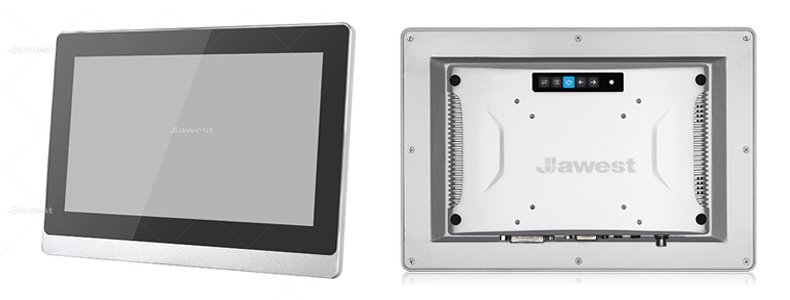

● 10mm bezel Aluminum touch monitor.
● 365 days*24 hours all-weather running.
● IP65 grade dust-proof and water proof.

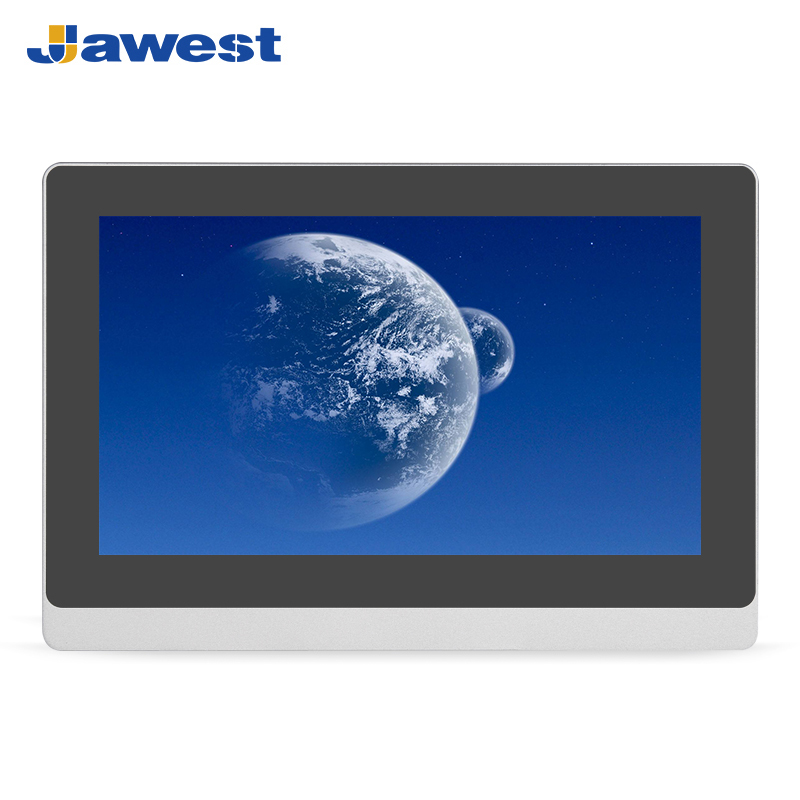

11.6 Inch LCD Touch Screen Monitor for POS Machine
Model: JWS116-M42
Jawest continually manufactures industrial-grade monitors with a wide range of sizes, which are suitable for applying to indoor industrial automation and outdoor commercial terminal devices, such as laser machines, cutting machines, CNC, temperature monitoring, and commercial smart terminal, POS machines, banking system, ATMs and so on. The industrial monitors offer common ports such as HDMI, DVI, VGA, and support interfaces expansion. The monitor is equipped with a high bright rating from 300~1500cd/m2. The latest Jawest fourth edition industrial monitors offer superior readability under sunlight, support auto-adjustment along change of environmental light. And the brushed, anodized aluminum alloy plate gives the monitor a modern and elegant appearance, and the entire
the enclosure is constructed with aluminum alloy material, making it strong rugged, and reliable, stable running under harsh factory or industrial environments.
Jawest Industrial Monitor Features
1. Aluminum alloy shell, good performance for heating-dissipation.
2. Industrial control LCD screen; long service life LED backlight screen.
3. Compatible with multiple operating systems for industrial conditions and application.
4. Besides the resistive touch, it also offers non-touchscreen, multi-touch capacitive touch.

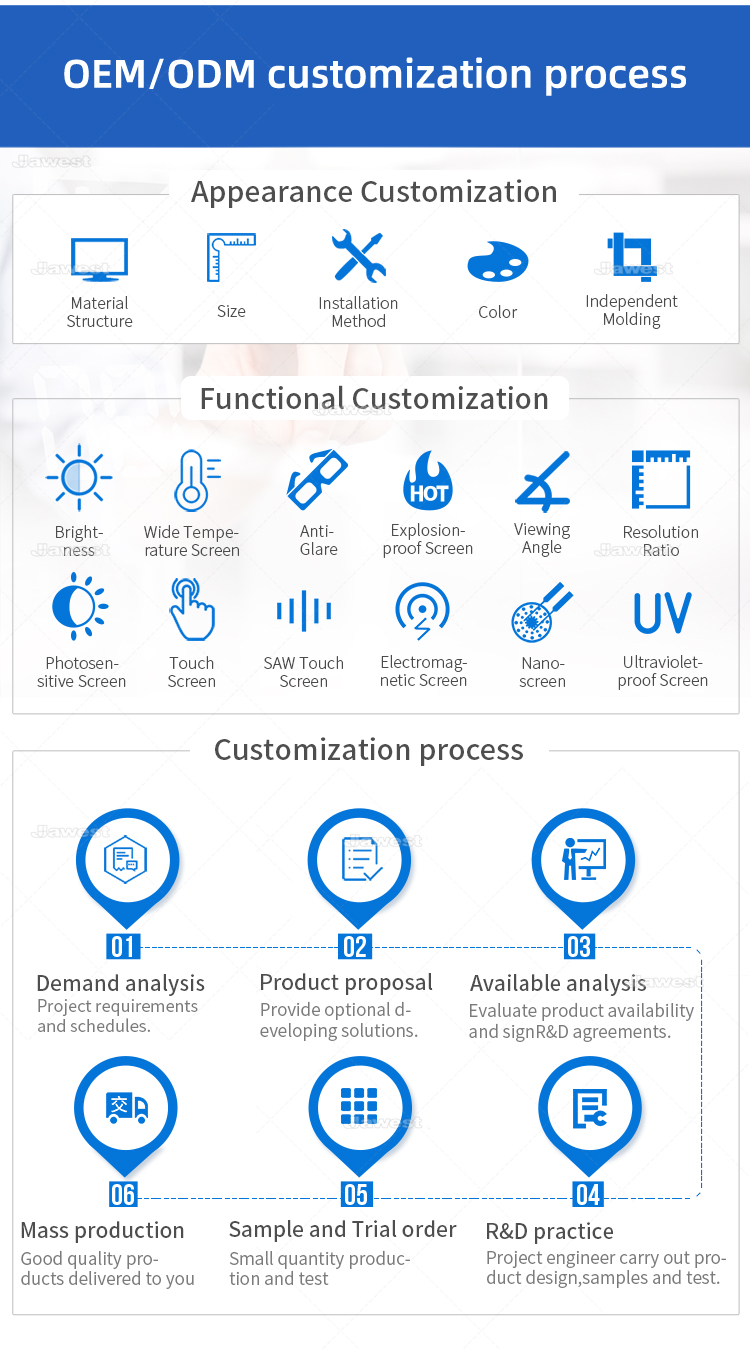

5. The industrial monitor supports a multi-functional module customization service.
6. Triple protection for the self-developed motherboard: explosion-proof, flameproof, moisture-proof.
7. Shock resistance standard reached GB2423, well-protected during transportation.
8. Anti-static level of contact is 4KV (supporting max level is 6KV), air contact up to 8KV.
9. Anti-surge design, Jawest industrial monitor support work as normal during instantaneous voltage rising into 280V.
10. PCB design: Anti combustion, explosion-proof and moisture-proof
11. Main chipset: REALTEK industrial level display chip
12. Power supply management: TI chipset, wide range 12-24V input
13. Pressure resistance design: Pressure resistance of solid-state capacitance in board 36V/105
14. Automatic sense design: Built-in automatic photosensitive interface, using the luminance automatic regulation of the photosensitive module.

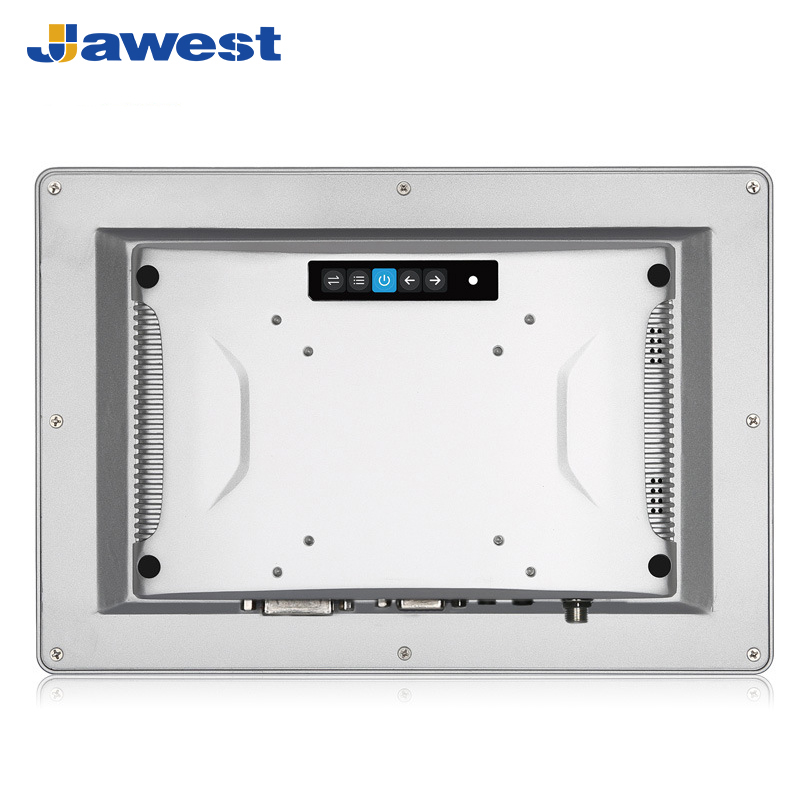

15. Support wall-mounted, desktop mount, embedded, VESA, etc
10mm bezel aluminum touch monitor datasheet | |||||||
Size | 11.6 inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A, A+ grade | ||||||
Aspect Ratio | 16:9 | ||||||
Resolution | 1920*1080 | ||||||
Contrast | 1000:1 | ||||||
Luminance | 250nit-1500nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 341.5*274 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 75/75/75/75 | ||||||
Touch Screen | Resistive touch screen (10-point capacitive and Infrared touch for optional) | ||||||

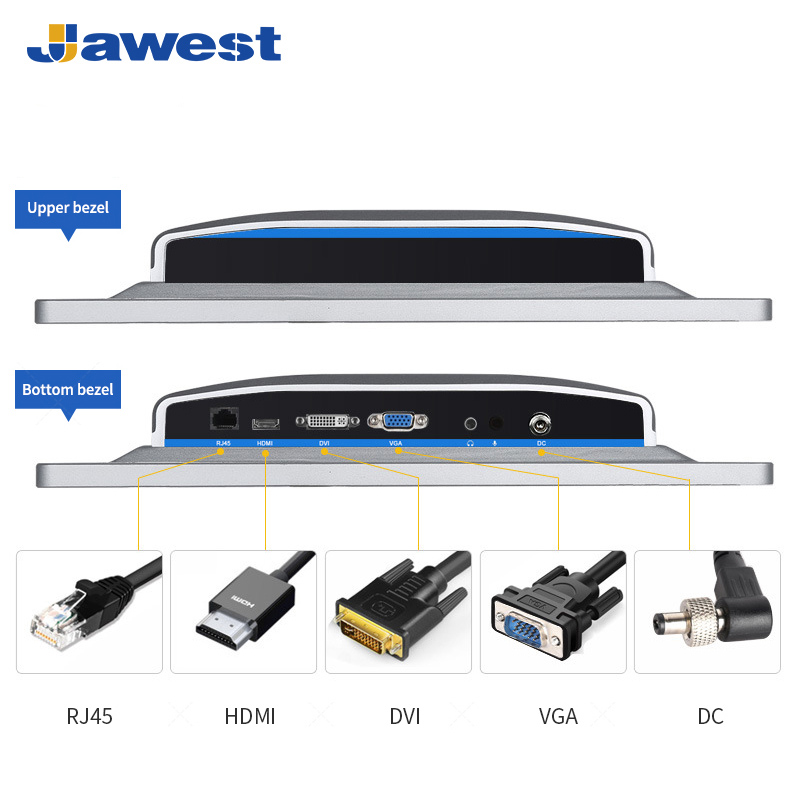

Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
Power Input | AC 110-240V, 50/60Hz | ||||||
Power Consumption | ≤30W | ||||||
Power Standby | ≤1.5W | ||||||
Plug&Play | DDC1/2B | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C-60°C | ||||||
Storage Temperature | -10°C-60°C | ||||||
Operation Humidity | 10%--80% | ||||||
Storage Humidity | 10%-90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 10mm bezel (3mm bezel for optional) | ||||||
IP rating | IP65 for front Panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop optional | ||||||
Certificates | CE,CCC,ISO,FCC,ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
