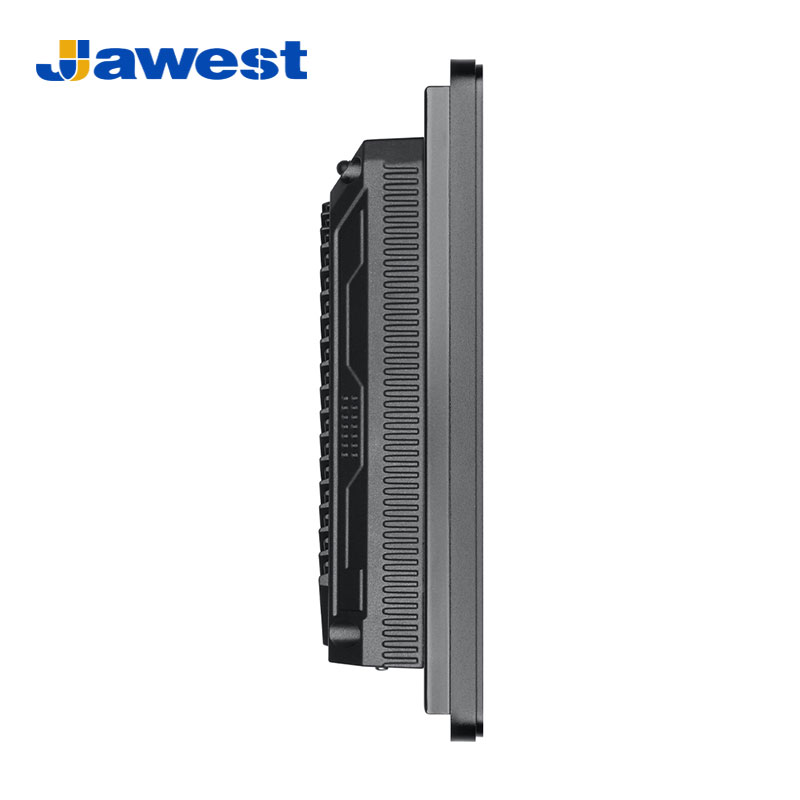

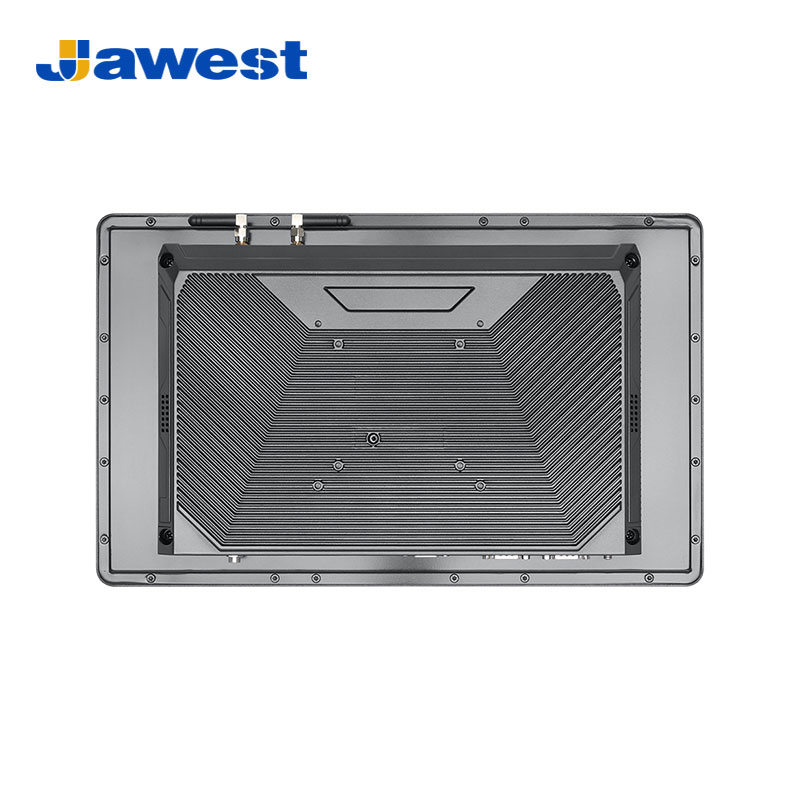

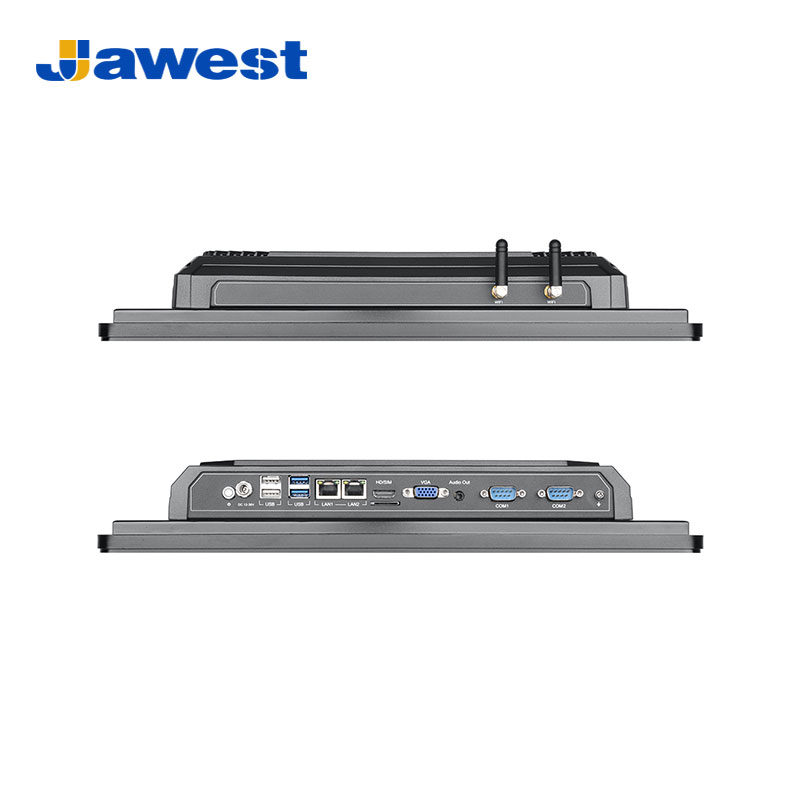

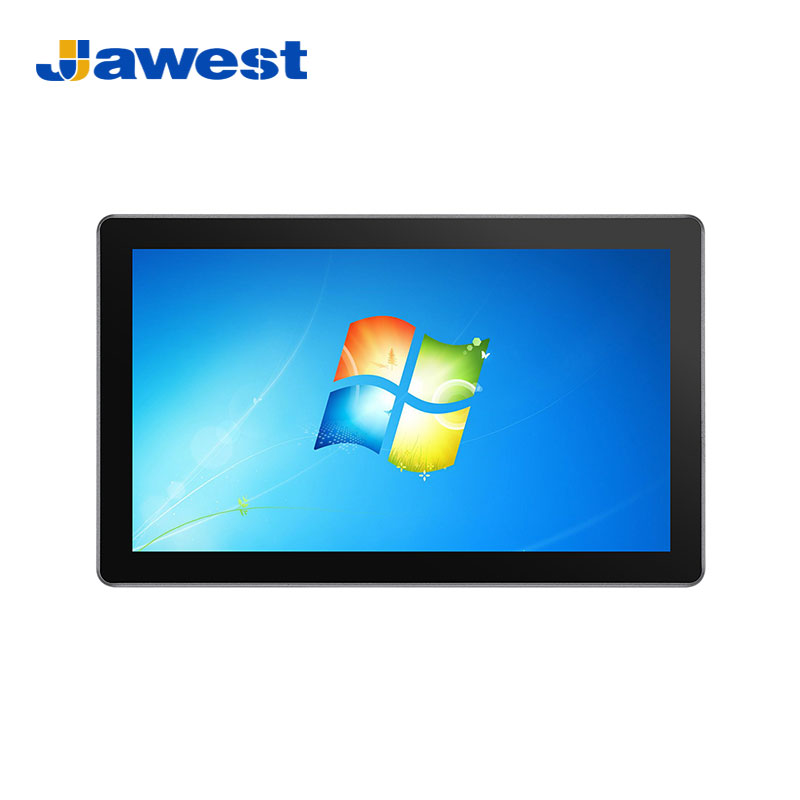

Industrial Touch Screen All-In-One PC with i5 4th–12th Generation CPU, Upgradable Design, Built-in Power Supply, PoE, Memory, and Storage
As industrial systems continue to evolve toward higher performance and greater flexibility, the demand for industrial touch screen all-in-one PCs with scalable computing power has grown significantly. Designed for automation, HMI, and embedded control applications, the Industrial Touch Screen All-In-One PC with Intel® Core™ i5 4th to 12th Generation CPU options delivers reliable performance, long-term availability, and exceptional upgrade flexibility.
With support for upgradable CPU platforms, built-in power supply, PoE, expandable memory, and hard drive options, this industrial PC is engineered to meet the changing requirements of modern industrial environments.
Industrial Panel PC - Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Get A Quote Now! |
JWS070-W33 | 7" | 1024*600 | 16:9 | 500cd/㎡ | Inquiry |
JWS080-W33 | 8" | 1024*768 | 4:3 | 300cd/㎡ | Inquiry |
| JWS101-W33 | 10.1"
| 800*1280 | 10:16 | 500cd/㎡ | Inquiry |
| JWS104-W33 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | Inquiry |
| JWS116-W33 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | Inquiry |
| JWS120-W33 | 12" | 1024*768 | 4:3 | 500cd/㎡ | Inquiry |
| JWS133-W33 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | Inquiry |
| JWS150-W33 | 15" | 1024*768
| 4:3 | 350cd/㎡ | Inquiry |
| JWS156-W33 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | Inquiry |
| JWS170-W33 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | Inquiry |
| JWS173-W33 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | Inquiry |
| JWS185-W33 | 18.5" | 1920*1080 | 16:9 | 300cd/㎡ | Inquiry |
| JWS190-W33 | 19" | 1280*1024 | 5:4 | 400cd/㎡ | Inquiry |
| JWS215-W33 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | Inquiry
|
| JWS238-W33 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | Inquiry |
| JWS270-W33 | 27" | 1920*1080 | 16:9 | 250~300cd/㎡ | Inquiry |
Note: High-brightness screen optional.
Scalable Intel Core i5 Performance from 4th to 12th Generation
At the heart of this industrial touch screen PC is a wide range of Intel Core i5 processors, spanning from 4th Generation Haswell to 12th Generation Alder Lake. This flexible CPU selection allows system integrators and OEMs to match performance levels precisely to application needs and project budgets.
Key advantages of Intel i5 industrial platforms include:
- Strong multitasking capability for HMI and control software
- Reliable performance for industrial automation and data processing
- Long-term platform stability for lifecycle-managed projects
From legacy system upgrades to next-generation industrial deployments, this all-in-one industrial PC supports both current and future performance requirements.
Industrial Touch Screen All-In-One Design for Space-Saving Installations
The all-in-one industrial PC design integrates the display, computing system, and power components into a single, compact unit. This reduces system complexity, minimizes wiring, and simplifies installation in control cabinets, kiosks, and industrial equipment.
Design of an all-in-one for the industrial touch screen PC with a clean and compact system architecture can reduce installation and maintenance time. And the fewer external components, the better the system reliability.
This design is ideal for factory automation, production lines, and embedded industrial applications.
This industrial panel PC supports the following functional upgrades
A. Built-In Power Supply for Industrial Reliability
Except for the external adapters, this industrial touch screen PC also support optional built-in industrial power supply. This kind of integrated power design enhances stability and reduces failure points in harsh operating environments.
Key benefits include:
- Improved resistance to power fluctuations
- Simplified wiring and cleaner installations
- Increased reliability for 24/7 industrial operation
A built-in power supply is a critical feature for industrial computers deployed in continuous-operation environments.
B. PoE Support for Flexible Industrial Networking
This industrial all-in-one PC supports an optional upgrade of Power over Ethernet (PoE), enabling both power and data transmission through a single Ethernet cable. PoE simplifies deployment in locations where traditional power wiring is difficult or costly.
PoE advantages include:
- Reduced cabling and installation complexity
- Cleaner system integration
- Ideal for distributed industrial control and smart factory applications
PoE functionality further enhances the flexibility of this industrial touch screen PC in modern networked environments.
C. Upgradable Memory and Hard Drive for Long-Term Value
Designed with expandability in mind, this industrial panel PC supports upgradable memory (RAM) and storage options, including SSD and HDD configurations. This allows system performance to be scaled over time without replacing the entire unit. What's more, this can Extended product lifecycle, lower the total cost of ownership, and facilitate easy adaptation to evolving software requirements
Standard Configuration: 8GB RAM; 128GB SSD
Upgradable Configuration: 4/16/32GB RAM; 64/256/512GB, 1T/2T/4T, etc.
Upgradability is essential for industrial systems that must remain operational for many years.
