Application:
23.8-Inch Industrial Panel Mount Windows Computer for Industrial Automation23.8-Inch Industrial Panel Mount Windows Computer for Industrial Automation23.8-Inch Industrial Panel Mount Windows Computer for Industrial Automation23.8-Inch Industrial Panel Mount Windows Computer for Industrial Automation

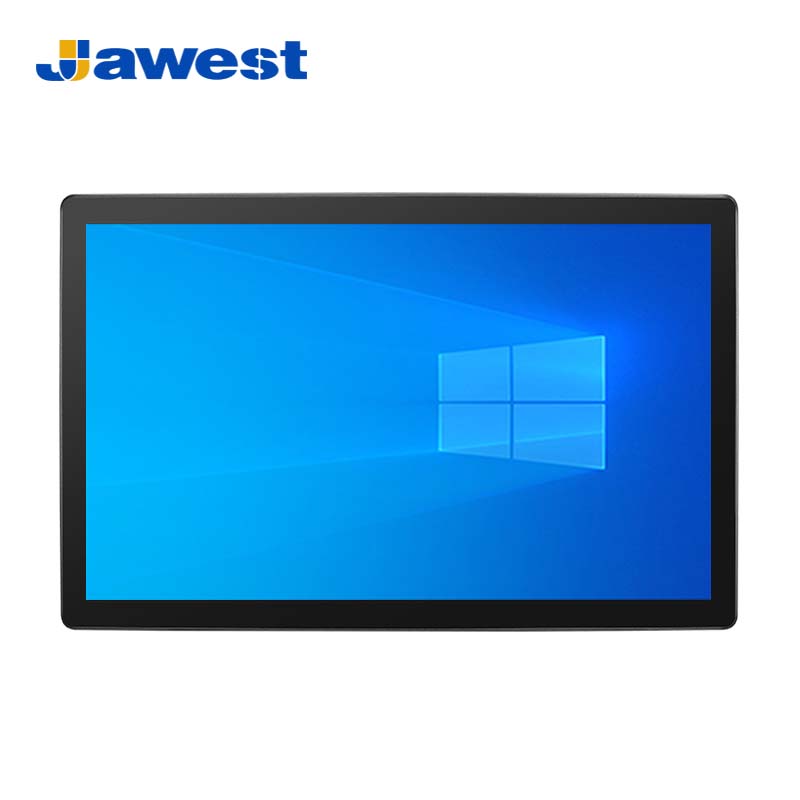

23.8-Inch Industrial Panel Mount Windows Computer for Industrial Automation


● Model: JWS238-W19

● Display size: 23.8 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● With Windows OS at its core, the system provides a familiar and user-friendly interface, facilitating ease of operation and reducing the learning curve for users.

● Engineered for seamless integration into industrial automation setups, this computer offers precise control and monitoring capabilities.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 23.8-inch Industrial Panel Mount Windows Computer for Industrial Automation


    Model: JWS238-W19



    Overview



    The 23.8-inch Industrial Panel Mount Windows Computer is a cutting-edge solution designed to meet the demands of industrial automation environments. Built to withstand the rigors of industrial environments, this panel-mount computer is rugged and durable. Its robust construction ensures resistance to dust, moisture, and vibrations, making it suitable for deployment in manufacturing floors, control rooms, and other challenging settings. Featuring a spacious 23.8-inch display, this panel-mount computer combines a large viewing area with the power and reliability of the Windows operating system.



    Engineered for seamless integration into industrial automation setups, this computer offers precise control and monitoring capabilities. The expansive display ensures clear visualization of critical data, enhancing the efficiency of industrial processes.










  • Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
    Hardware ConfigurationCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzi3-1215Ui5-1235Ui7-1255U
    Inner Memory4/8GB options4/8GB options8/16GB optionsDDR4 32GB
    Storage16/32/64/128/256/512GB SSD options32/64/128/256/512GB SSD, 1T/2T HDD options32/64/128/256/512GB SSD, 1T/2T HDD options64/128GB (256GB/512GB SSD, 1T/2T HDD options)
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
    Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
    3G/4G/5G ModuleSupport (Optional)
    WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
    BluetoothBT4.0BT4.0BT5.2BT4.0
    GPSOptionalOptionalOptionalOptional
    MICOptionalOptionalOptionalOptional
    RTCSupportSupportSupportSupport
    Timing Turn On/OffSupportSupportSupportSupport
    Wake On LANSupportSupportSupportSupport
    Plug-n-PlaySupportSupportSupportSupport

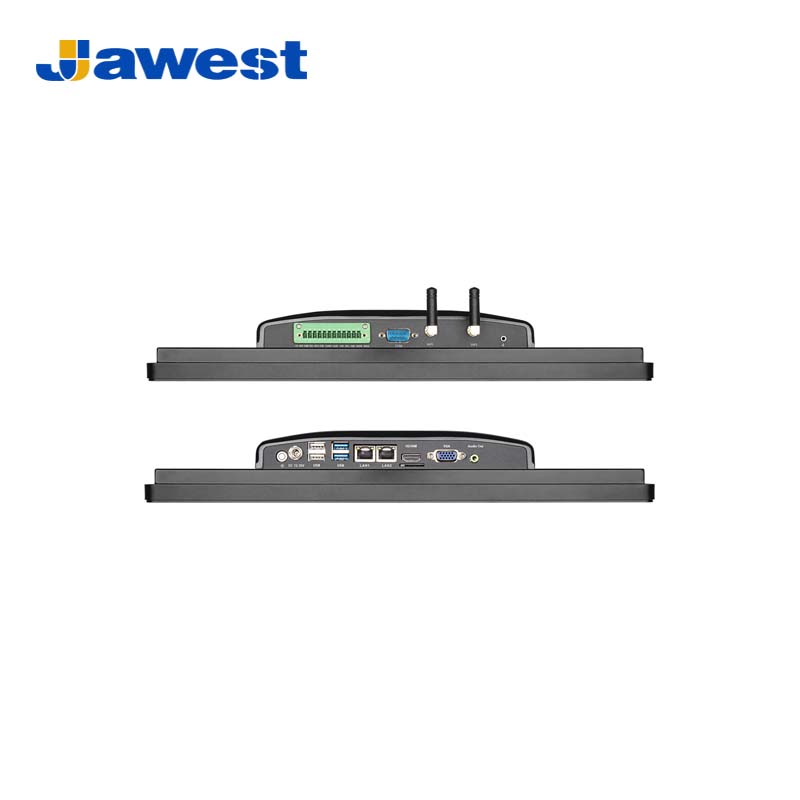

    I/O PortsUSB Ports USB2.0*2, USB3.0*1
    COM Serial Ports RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5)
    WIFI connector WIFI antenna *2
    Power 1*DC, support 12V ~36V wide voltage power input
    HDMI 1*HDMI, supports HDMI data output, 1080P
    VGA Standard DB15 interface
    RJ45 Ethernet 1*Realtek 8111F Gigabit interface, support wake-on-LAN
    Speaker Jack Standard 3.5mm
    SIM Slot Standard SIM slot supports various customization
    Audio Audio I/O
    I/O expansion Available

    Screen ParametersColor16.7M
    Pixel Pitch0.264mm
    Screen PanelIndustrial control screen
    Contrast1000:1
    Brightness250~300cd/m2 (support high brightness)
    Viewing angle89°/89°/89°/89° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Gray-scale response time5ms
    Touch ScreenCapacitive touchscreen, resistive touchscreen, and Non-touch options
    Installation typesPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Power AdapterPower InputDC in 12V ~ 36V
    Adapter24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient humidity 20% - 95% (relative humidity non-condensing)
