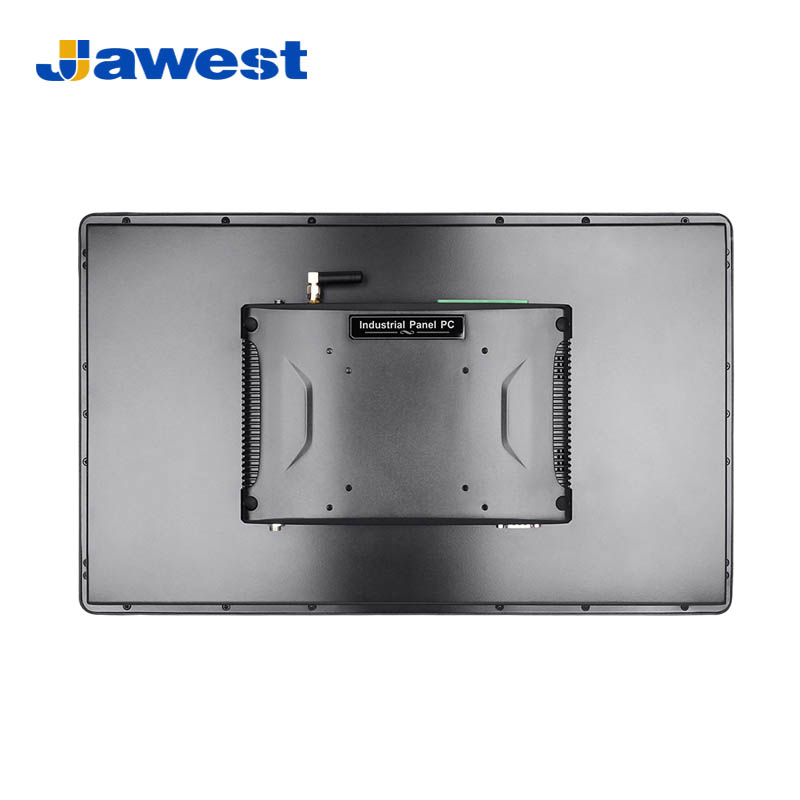

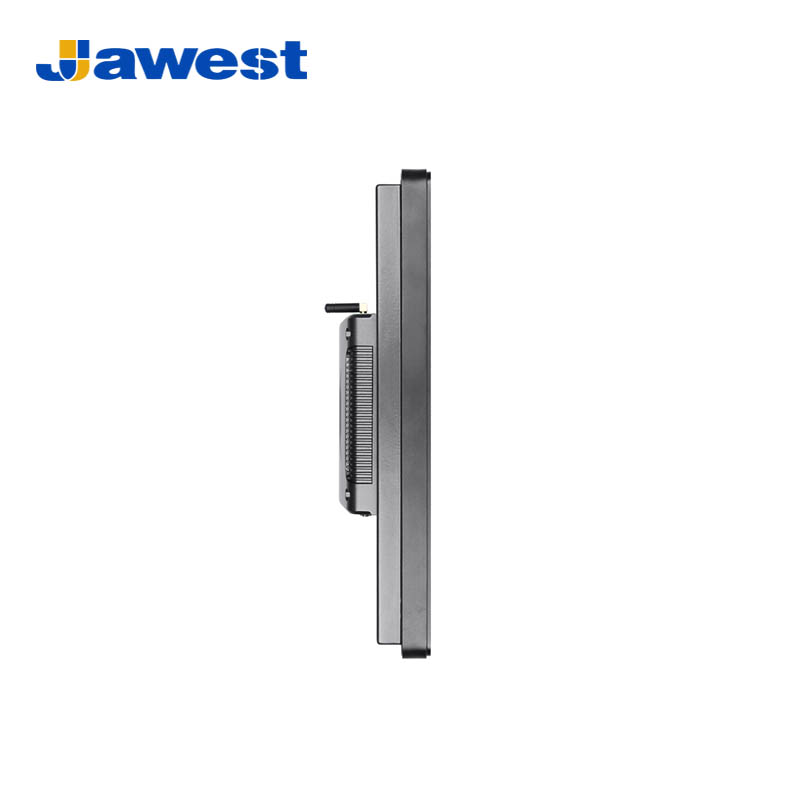

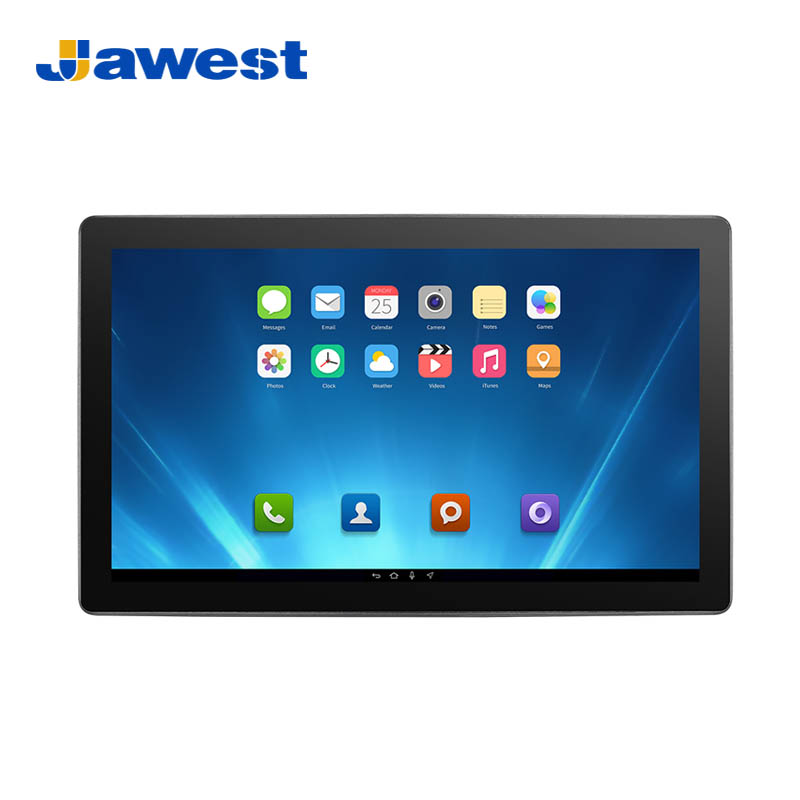

18.5 inch Industrial Panel PC with Android 13.0 WIFI 6

18.5 inch Industrial Panel PC with Android 13.0 WIFI 6

● Model: JWS185-A19

● Display size: 18.5 inch.

● Powered by the latest Android 13.0, this Panel PC delivers an advanced and versatile computing environment, supporting a wide range of industrial applications and software.

● Support multiple high-performance processors, including RK3588/RK3568/RK3399/RK3288/A64, etc.

● Configuration Options: 2/4/8/16/32GB for RAM, 8/16/32/64/128/256GB for storage.

● Equipped with state-of-the-art WiFi 6 technology, ensures fast and reliable wireless connectivity, facilitating seamless data transfer and communication in industrial settings.

Appearance of the color

Black

Silver

Description
Parameter
Case

18.5 inch Industrial Panel PC with Android 13.0 and WIFI 6

Model: JWS185-A19

Overview

This advanced 18.5-inch Industrial Panel PC seamlessly integrates the power of Android 13.0 with cutting-edge WiFi 6 connectivity. Featuring a range of customizable I/O ports, it facilitates easy integration with industrial equipment, sensors, and peripherals, enhancing overall connectivity and compatibility. This industrial-grade computing solution is crafted to meet the demands of diverse applications, offering a robust and feature-rich platform for industrial environments.

Elevate your industrial applications with our 18.5-inch Industrial Panel PC, featuring Android 13.0 and WiFi 6 connectivity. This device is a testament to advanced technology, offering a reliable and efficient solution for control systems, automation, and data visualization in the ever-evolving landscape of industrial computing.


Display Parameters	Size	18.5"
	Resolution	1920*1080
	Screen Ratio	16:9
	Brightness	300 nits (Optional high brightness)
	Contrast Ratio	1000:1
	Viewing Angle	89°/89°/89°/89° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A	CX-3588-G
System Architecture	CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T764	Mali-T860 MP4	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4	Mali G610 MP4
	Memory (DDR)	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)	8GB (16/32GB optional)
	Storage (eMMC)	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	/	/	Support	/	1*SATA hard drive port
	Operating System	Android 6.0	Android 7.1 / 10.0	Android 7.1 / 9.0 / 11	Android 7.1 / 9.0 / 11	Android 12	Android 13.0	Android 12
		/	Linux 4.4	Linux 4.4	Linux 4.4	Linux 5.10	Linux 5.10	Linux 5.10
		/	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04	Ubuntu 20.04	Ubuntu 20.04
		/	Debian 10.0	Debian 10.0	Debian 10.0	Debian 11.0	Debian 11.0	Debian 11.0

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet					1Gigabit Ethernet + 1100 Mbit Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/	/	/	Support M.2 5G module interface
	WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G	WIFI5/WIFI6 (optional), dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0	BT4.2 (WIFI 5) / BT5.0 (WIFI 6)

Touch Function	Touch Interface	USB/IIC	USB	USB/IIC

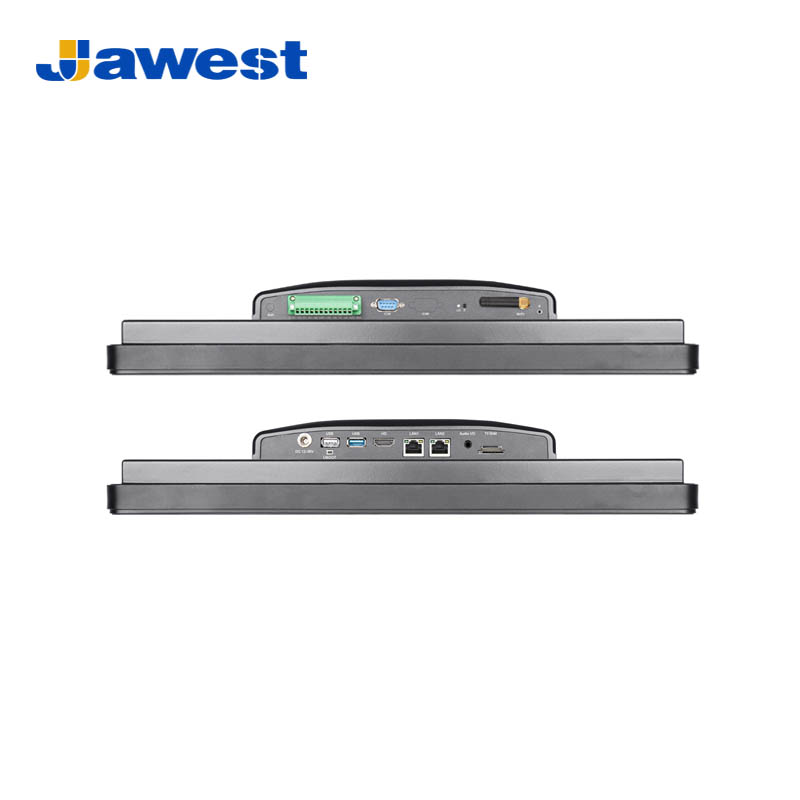

I/O Ports	USB	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB, 1OTG	2*USB3.0	1USB, 1OTG	4*USB3.0
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1HDMI In+1HDMI Out, 8K
	LAN	1*LAN	1*LAN	1*LAN	1*LAN	1*LAN	2*LAN	2*LAN
	DC	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1
	COM	2RS232+2Reserved holes			1RS232+1Reserved hole
	TF/SIM	1* TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot
	WiFi Antenna	1*WiFi Antenna	1*WiFi Antenna	1WiFi Antenna+1Reserved hole
	Audio I/O	1*3.5mm Earphone Jack
	Reset Button	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT
	GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND
	MICRO OTG	1*MICRO OTG	/	/	/	/	/	/
	1*12P Phoenix Terminal	/	/	/	1*DC	1*DC	1*DC	1*DC
		/	/	/	1*RS232	1*RS232	1*RS232	1*RS232
		/	/	/	1*RS485	1*RS485	1*RS485	1*RS485
		/	/	/	1*TTL	1*CAN	1*CAN	1*CAN
		/	/	/	3*GPIO	3*GPIO	3*GPIO	3*GPIO
	I/O Expansion	Support

Power	Power Input	12V DC	12V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A

Mechanical	Dimension	458.2278.865.5mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless
	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
