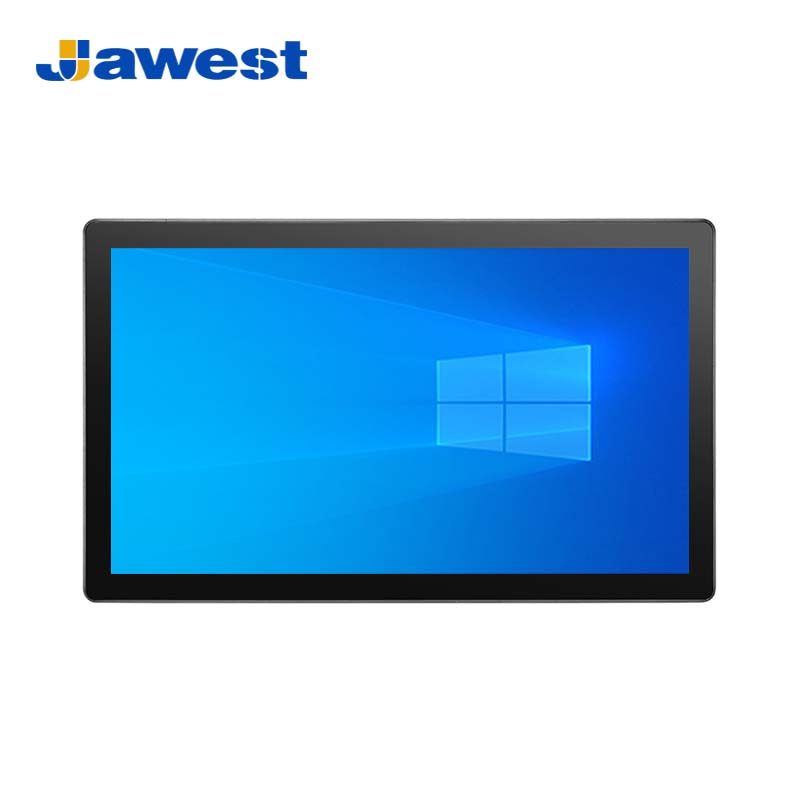

18.5 inch Industrial Panel Mount Computer with IP65 Rated Front Panel Color Display

18.5 inch Industrial Panel Mount Computer with IP65 Rated Front Panel Color Display

● Model: JWS185-W19

● Display size: 18.5 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● The IP65-rated front panel ensures protection against dust, water, and other environmental elements, making this industrial panel computer an ideal choice for settings where resilience is paramount.

Appearance of the color

Black

Silver

Description
Parameter
Case

18.5 inch Industrial Panel Mount Computer with IP65 Rated Front Panel Color Display

Model: JWS185-W19

Overview

Introducing the 18.5-inch Industrial Panel Mount Computer with IP65-Rated Front Panel, a robust computing solution designed to thrive in demanding industrial environments. This panel-mount computer seamlessly merges a compact form factor with durability, offering reliable performance even in challenging conditions.

The standout feature of the IP65-rated front panel ensures protection against dust, water, and other environmental elements, making this industrial computer an ideal choice for settings where resilience is paramount.

Built for industrial automation, control systems, and harsh manufacturing environments, this panel-mount computer is engineered to withstand the rigors of daily operation. The IP65 rating signifies its resistance to water jets, ensuring that the front panel remains sealed and secure against moisture ingress. This makes it well-suited for applications where cleanliness and hygiene are essential considerations.


Motherboard Model Selection		CL-J1900B	CX-J4125-A	CX-J6412	CX-12U01
Hardware Configuration	CPU	Intel Celeron J1900 Quad-Core 2.0GHz	Intel Celeron J4125 Quad-Core 2.0GHz	Intel Celeron J6412 Quad-Core 2.0GHz	i3-1215U	i5-1235U	i7-1255U
	Inner Memory	4/8GB options	4/8GB options	8/16GB options	DDR4 32GB
	Storage	16/32/64/128/256/512GB SSD options	32/64/128/256/512GB SSD, 1T/2T HDD options	32/64/128/256/512GB SSD, 1T/2T HDD options	64/128GB (256GB/512GB SSD, 1T/2T HDD options)
	GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs	Intel Iris Xe Graphics 64	Intel Iris Xe Graphics 80	Intel Iris Xe Graphics 96
	Operating System	Win 7 / Win 10	Win 10 / Win 11	Win 10 / Win 11	Win 10 / Win 11
		Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04			/
		Centos7.4/7.8/7.9; Redhat7.4; Debian11.6	Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6		/
	3G/4G/5G Module	Support (Optional)
	WIFI	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz
	Bluetooth	BT4.0	BT4.0	BT5.2	BT4.0
	GPS	Optional	Optional	Optional	Optional
	MIC	Optional	Optional	Optional	Optional
	RTC	Support	Support	Support	Support
	Timing Turn On/Off	Support	Support	Support	Support
	Wake On LAN	Support	Support	Support	Support
	Plug-n-Play	Support	Support	Support	Support

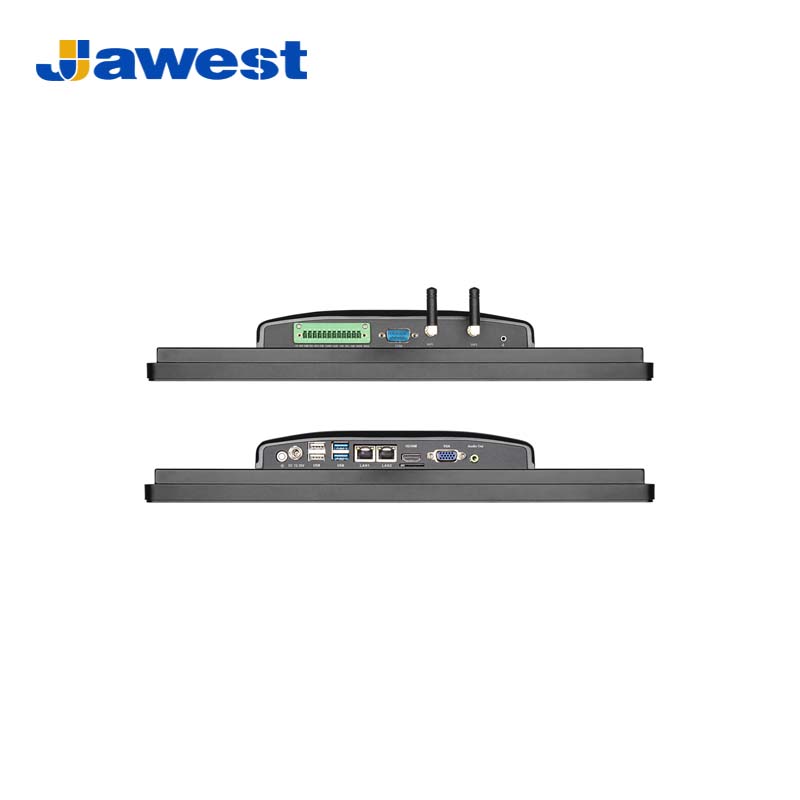

I/O Ports	USB Ports	USB2.02, USB3.01
	COM Serial Ports	RS232(DB9)1, COM Reserved1(Optional RS232/422/485), 12P Phoenix Terminal (DC1+RS2321+RS4851+GPIO5)
	WIFI connector	WIFI antenna *2
	Power interface	1*DC, support 12V ~36V wide voltage power input
	HDMI Interface	1*HDMI, supports HDMI data output, 1080P
	VGA	Standard DB15 interface
	RJ45 Ethernet	1*Realtek 8111F Gigabit interface, support wake-on-LAN
	Speaker Jack	Standard 3.5mm
	SIM Slot	Standard SIM slot supports various customization
	Audio interface	Audio I/O
	I/O expansion	Available

Screen Parameters	Color	16.7M
	Pixel Pitch	0.264mm
	Screen Panel	Industrial control screen
	Contrast	1000:1
	Brightness	300cd/m2 (support high brightness)
	Viewing angle	89°/89°/89°/89° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Gray-scale response time	5ms
	Touch Screen	Capacitive touchscreen, resistive touchscreen, and Non-touch options
	Installation types	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Power Adapter	Power Input	DC in 12V ~ 36V
	Adapter	24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient humidity	20% - 95% (relative humidity non-condensing)
