● Model: JWS238-A19
● Display size: 23.8 inch
● Configuration Options: 2/4/8/16/32GB for RAM, 8/16/32/64/128/256GB for storage.
● Multiple Processors Options: RK3588/RK3588/RK3399/RK3288/A64, etc.
● Android OS Flexibility: Provides a versatile and customizable platform for outdoor advertising applications, supporting a wide range of content formats and interactive features.
● The high-brightness display ensures optimal visibility, making it ideal for outdoor advertising where sunlight readability and clear visibility are paramount.

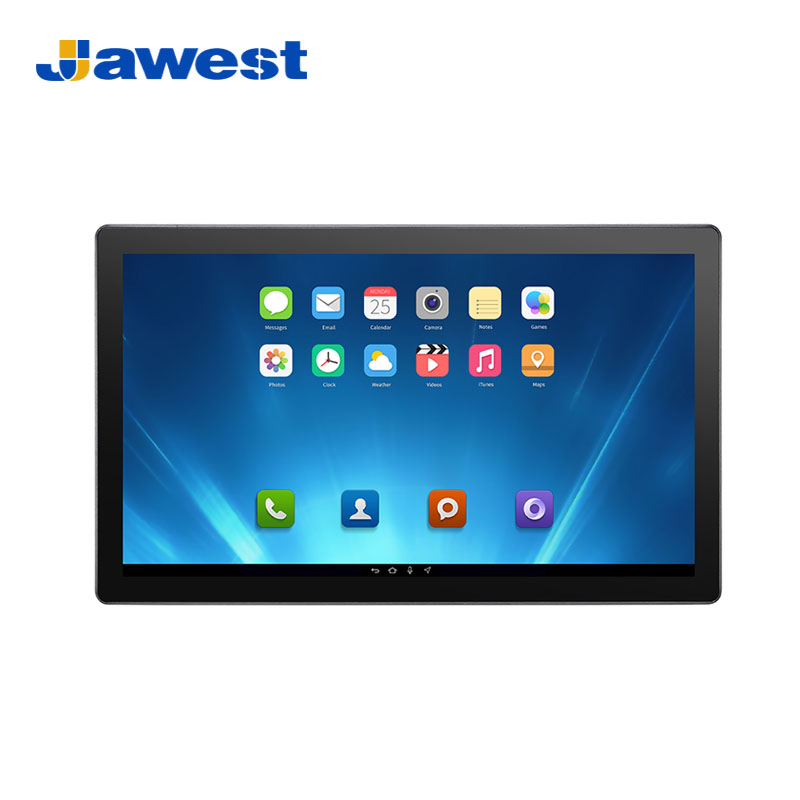

23.8" High Brightness Android Panel PC For Outdoor Advertising Machines
Model: JWS238-A19
Overview
Jawest's cutting-edge 23.8-inch High Brightness Android Panel PC is specifically designed for Outdoor Advertising Machines. This industrial-grade computing solution seamlessly integrates the flexibility of the Android operating system with a high-brightness display, ensuring optimal visibility and performance in outdoor environments.
Elevate your outdoor advertising with our 23.8-inch High Brightness Android Panel PC, offering a powerful combination of advanced features, visibility, and durability. Whether deployed for interactive kiosks, digital signage, or promotional displays, this Panel PC provides a reliable and efficient solution for creating impactful outdoor advertising experiences.
Display Parameters | Size | 23.8" | ||||||
Resolution | 1920*1080 | |||||||
Screen Ratio | 16:9 | |||||||
Brightness | 250~300 nits (Optional high brightness) | |||||||
Contrast Ratio | 1000:1 | |||||||
Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | Android 12 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | Ubuntu 20.04 | Ubuntu 20.04 | ||
/ | Debian 10.0 | Debian 10.0 | Debian 10.0 | Debian 11.0 | Debian 11.0 | Debian 11.0 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet | ||||
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||

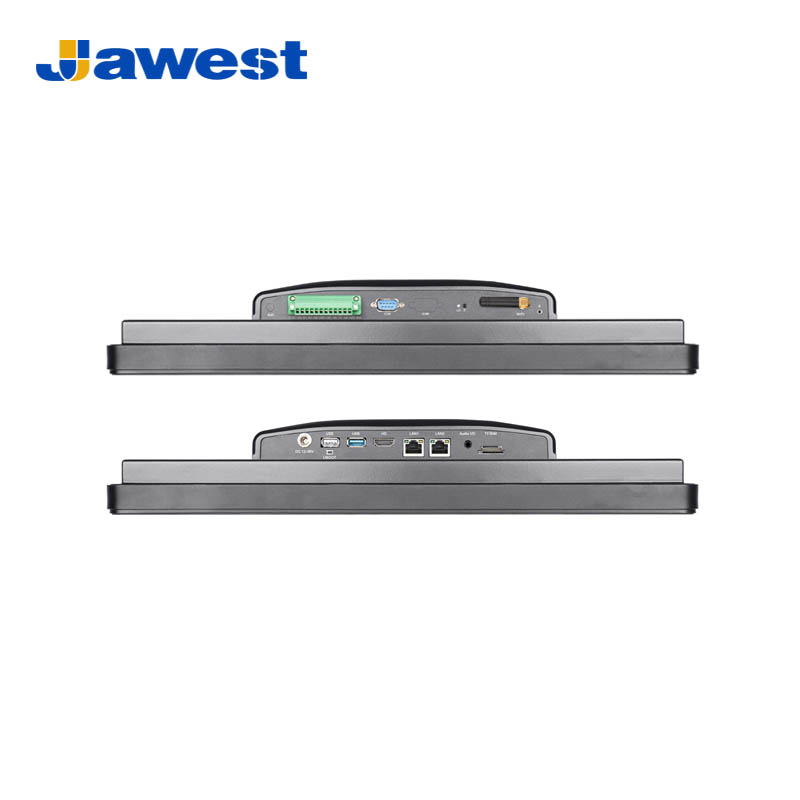

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | ||||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | |||||
Audio I/O | 1*3.5mm Earphone Jack | |||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |

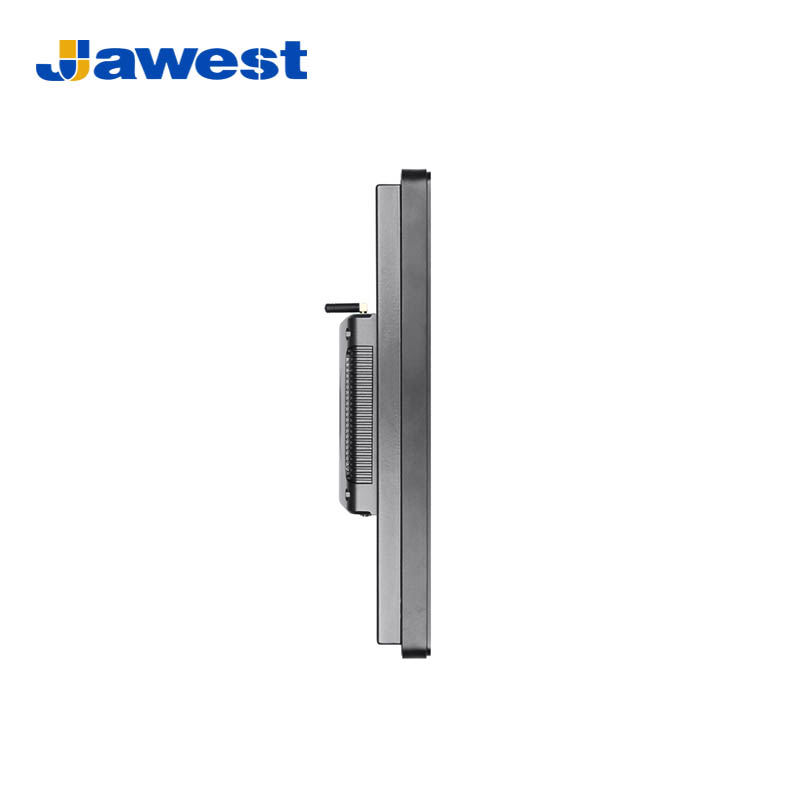

Mechanical | Dimension | 576.4*345.9*65.5mm | ||||||
Enclosure | Aluminum alloy housing | |||||||
Cooling System | Fanless | |||||||

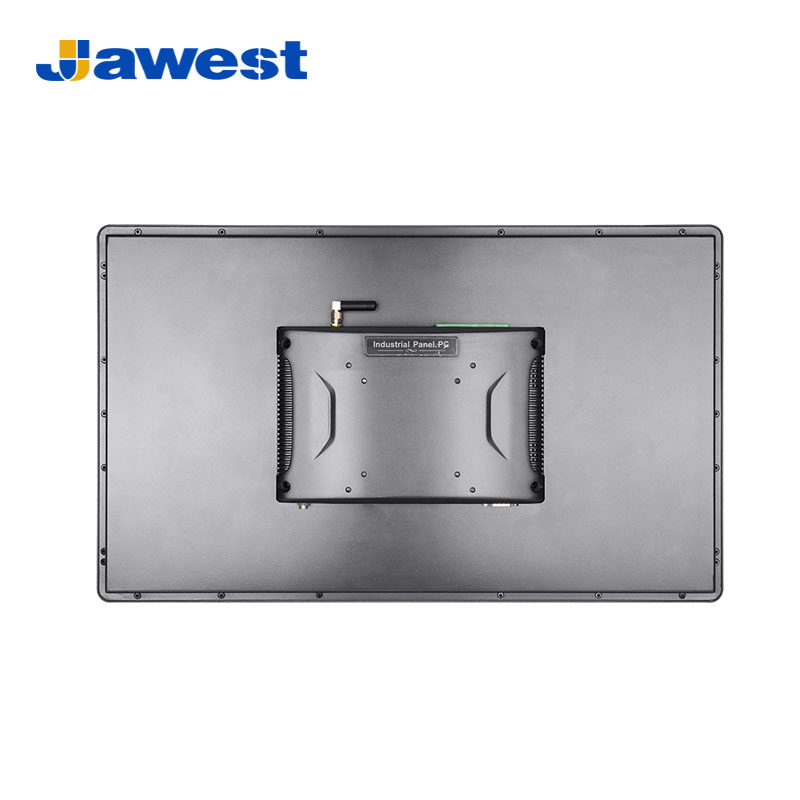

Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -10°C ~ 60°C | ||||||
Storage Temp | -20°C ~ 70°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 |
