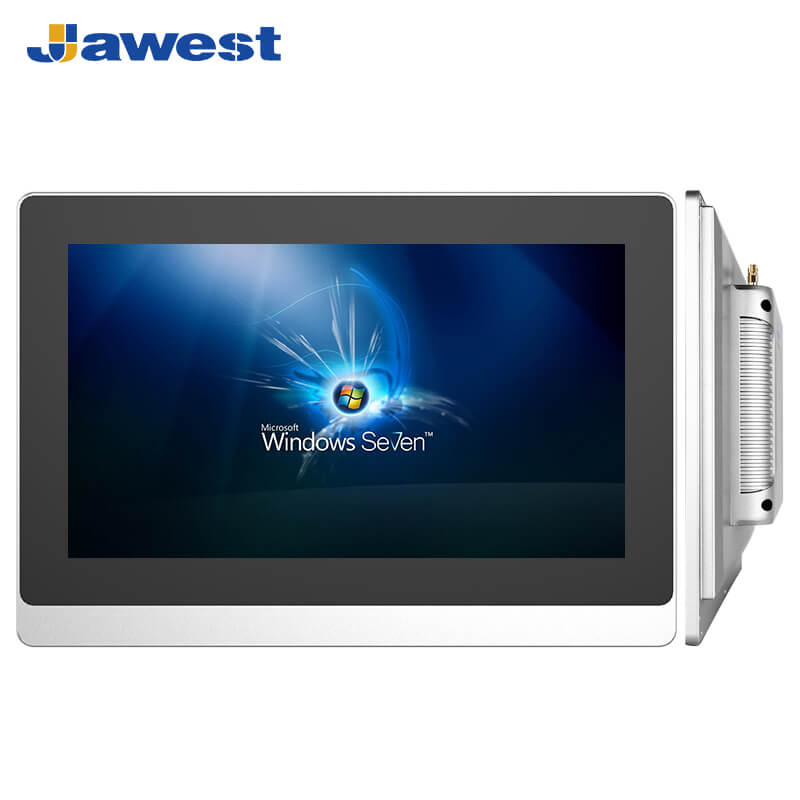

15.6 Inch Industrial Panel Computer Windows System
Model: JWS156-W4
This Jawest 15.6" industrial touchscreen panel PC is designed with a compact HMI touch panel, offering reliable performance in complex industrial environments and harsh conditions for 7/24 hours of operation. OEMs and ODMs are available for our global customers. The touchscreen computer is suitable for machinery manufacturers with reliable industrial embedded computing technologies and solutions that help customers simplify workflow in the fields of Internet of Things (IoT), AI, HMI, M2M, PLC, IPC or
SCADA applications.
Jawest Industrial All-in-one Panel PC Features
• 15.6-inch with 1920x1080 resolution display; Aspect ratio: 16:9.
• Full flat IP65 protected touchscreen.
• Attractive appearance, and one-piece of die-cast housing design.
• Abundant I/O ports, support expansion.
• Fanless heating-dissipation, no-noise, and low power consumption.
• Sunlight readable screen for outdoor devices (up to 1500 nits).
• Operating System: Windows, Ubuntu, Centos, Redhat, and Debian options.
• Default configuration: J1900 CPU (expandable to higher configuration).
• Ten-point PCAP touch control screen, five-wire resistive touch for option.
• 10mm front bezel and aluminum enclosure, strong impact resistant in harsh environments.
• Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U.
• Configuration options: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD.

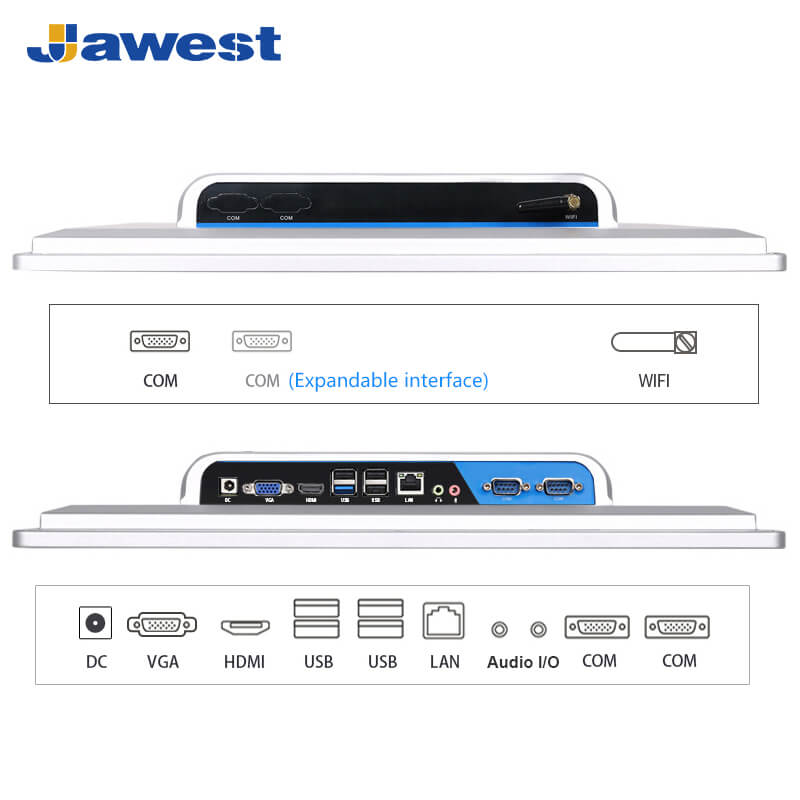

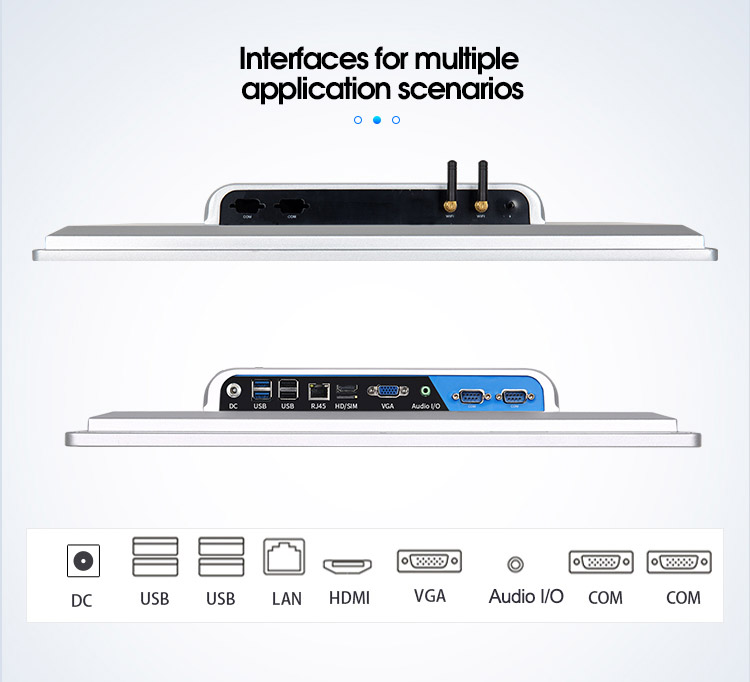

• I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1, DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.

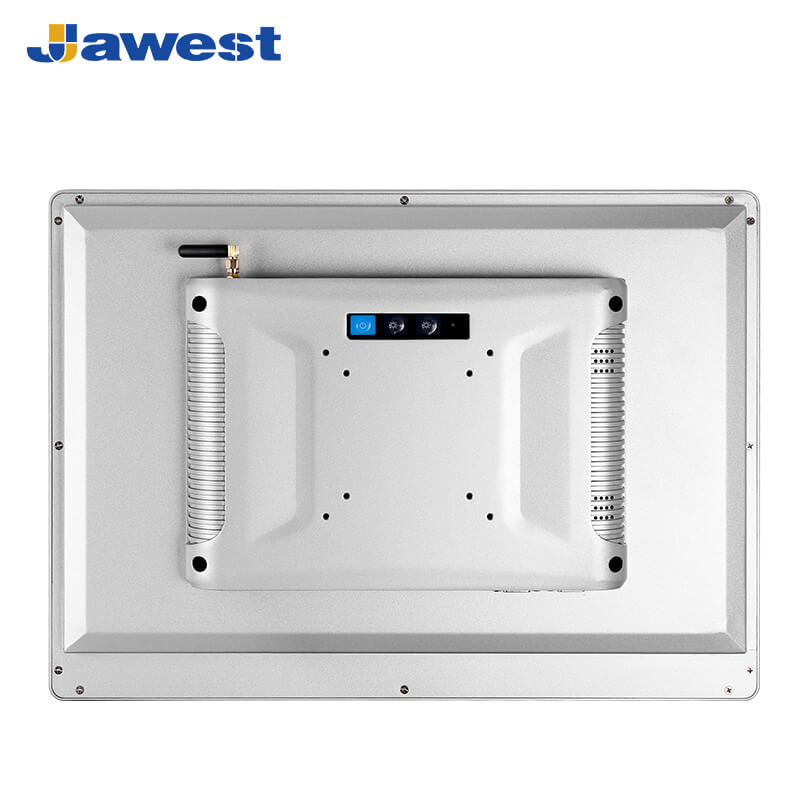

• Multi-mounting options: VESA, desktop, and wall-mounted.
