Application Overview

Background:

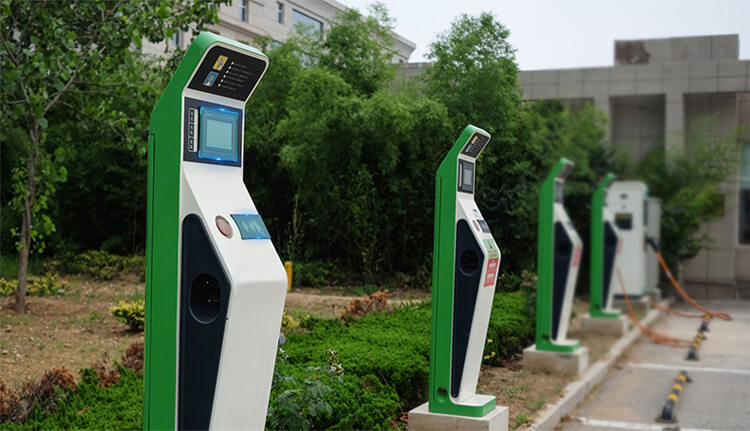

Intelligent charging piles have similar functions to the refueling machines in gas stations. They can be fixed on the ground or walls, installed in public buildings (public buildings, shopping malls, public parking lots, etc.) and residential parking lots or charging stations. They can charge various types of electric vehicles according to different voltage levels. The input end of the charging pile is directly connected with the AC network, and the output end is equipped with a charging plug for charging the electric vehicle. Charging piles generally provide two charging modes: conventional charging and fast charging. Users can use specific charging cards to 'swipe' cards on the interface of man-machine interaction provided by charging piles, and carry out corresponding charging modes, charging time, cost data printing, etc. Charging pile display screen can display charging amount, cost, charging time and other data.

System Functional Requirements:

1. Supporting identity recognition, online payment function.

2. Stable operation in harsh working conditions.

3. The screen is visible under direct sunlight.

4. Flexible expansion of card reader, printer, watt-hour meter and other equipment.

Working Principle and Solution

Jawest smart charging pile device is designed with industrial components. It has strong impact resistance, good anti-theft performance, anti-aging and other reliable performance in harsh environment. It ensures the continuous and stable operation of the system. Independent research and development of motherboard and embedded solutions to expand the product's good performance and compatibility; True flat IP65 rating dust-proof and waterproof, automatic light adjustment and other design to meet customer's demands for touch-control hardwares, thus refers to reliability, easy to use, scalability and so on, which enable users to experience efficient, safe and intelligent charging services.

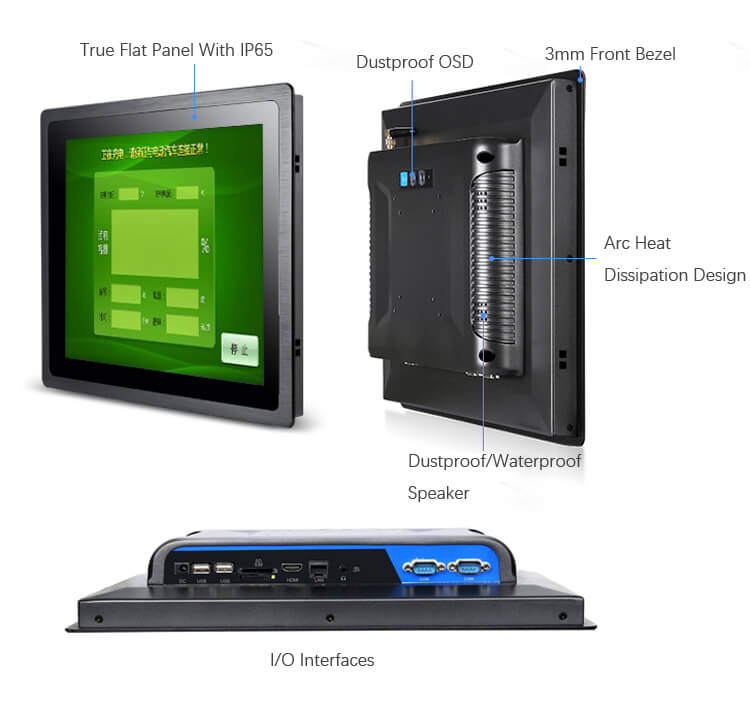

Introduction of Product Hardware

· Industrial grade components, the whole machine has the characteristics of high anti-vibration, dust-proof, excellent heating-dissipation and strong environmental applicability.

· Support multiple functions such as identity recognition, charging operation, parameter setting, interface display and so on.

·- 10~60°C wide temperature operation and low power design to meet the requirements of harsh environment.

· Support 1000cdm high brightness screen and automatic photosensitive function.

· Using Quantum membrane technology to insulate heat and reduce heat.

· Explosion-proof, dust-proof and waterproof for the whole machine

· Adopting air-cooled heat dissipation scheme
