● 10.1" to 21.5" optional true flat IP65 protected touchscreen
● Intel Celeron J1900 quad-core processor
● Anti-static industrial-grade motherboard
● 10 point PCAP touch, single point resistive touch
● Built-in Wi-Fi + BT module
● Optional camera and RFID module
● Working temperature:-10-60°C
● Aluminum alloy die-casting housing, anti-corrosion
● Support 24/7 long-time operation
● OSD on the front/back panel for brightness adjustment
● OEM/ODM custom design by request

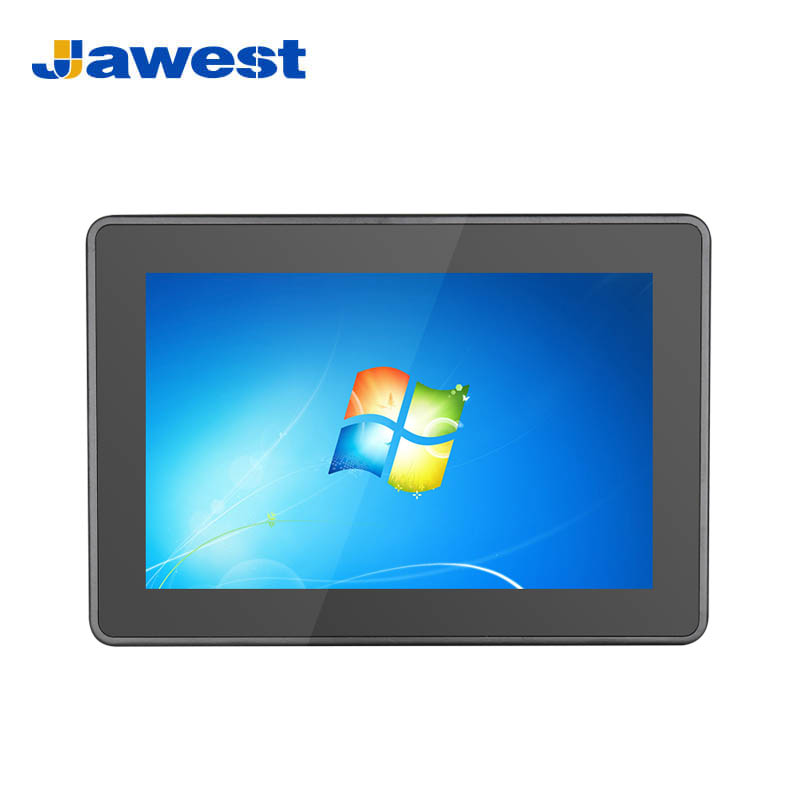

The Jawest 5th-GEN series industrial panel PC based on X86 is fanless and highly cost-effective, easy to clean and maintain. Supports a capacitive touch screen or resistive touch screen, or non-touchscreen. It is an ideal solution to realize industrial-grade touch control and display, HMI panels for industry 4.0, medical systems, and IoT, etc.
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio |
| JWS101-W5 | 10.1" | 1280*800 | 16:10 |
| JWS104-W5 | 10.4" | 1024*768 | 4:3 |
| JWS116-W5 | 11.6" | 1920*1080 | 16:9 |
| JWS120-W5 | 12" | 1024*768 | 4:3 |
| JWS150-W5 | 15" | 1024*768 | 4:3 |
| JWS156-W5 | 15.6" | 1920*1080 | 16:9 |
| JWS170-W5 | 17" | 1280*1024 | 5:4 |
| JWS173-W5 | 17.3" | 1920*1080 | 16:9 |
| JWS190-W5 | 19" | 1280*1024 | 5:4 |
| JWS191-W5 | 19.1" | 1440*900 | 16:10 |
| JWS215-W5 | 21.5" | 1920*1080 | 16:9 |
| Jawest 5th-GEN Industrial All In One PC with 7mm Front Bezel | ||||||||
| Size | 10.1 inch to 21.5 inch | |||||||
| Display | ||||||||
| Panel Type | Industrial LCD panel A, A+grade | |||||||
| Luminance | 300nit-1500nit | |||||||
| Response time | 5ms | |||||||
| Active Area (mm) | 250*188.4 | |||||||
| Display colors | 16.7M(8-bit) | |||||||
| View angle | 75/75/75/75 | |||||||
| PC Configuration | ||||||||
| CPU | Intel Celeron J1900 fanless, Intel i3/i5/i7 can be customized | |||||||
| Graphics Card | Integrated Intel HD Graphics | |||||||
| Inner memory | 2G DDR3 RAM ( 4G/8G RAM can be customized) | |||||||
| Storage | 32G SSD (64G/128G/256G SSD, 500G HDD can be customized) | |||||||
| Expansion Card Slot | 2xMini-PCIe slot, support SSD, WIFI, 3G module | |||||||
| Audio | Realtek ALG662 6 soundtrack audio frequency | |||||||
| Internet | 1xRTL811E gigabit network card | |||||||
| Operating System | Pre-installed Win7, and offer Win8, 10 for optional | |||||||
| Support multi-language | English/Portuguese/French…etc | |||||||
| Touch Screen | 10-point capacitive touchscreen, 5 wire resistive touchscreen, and infrared touch optional | |||||||

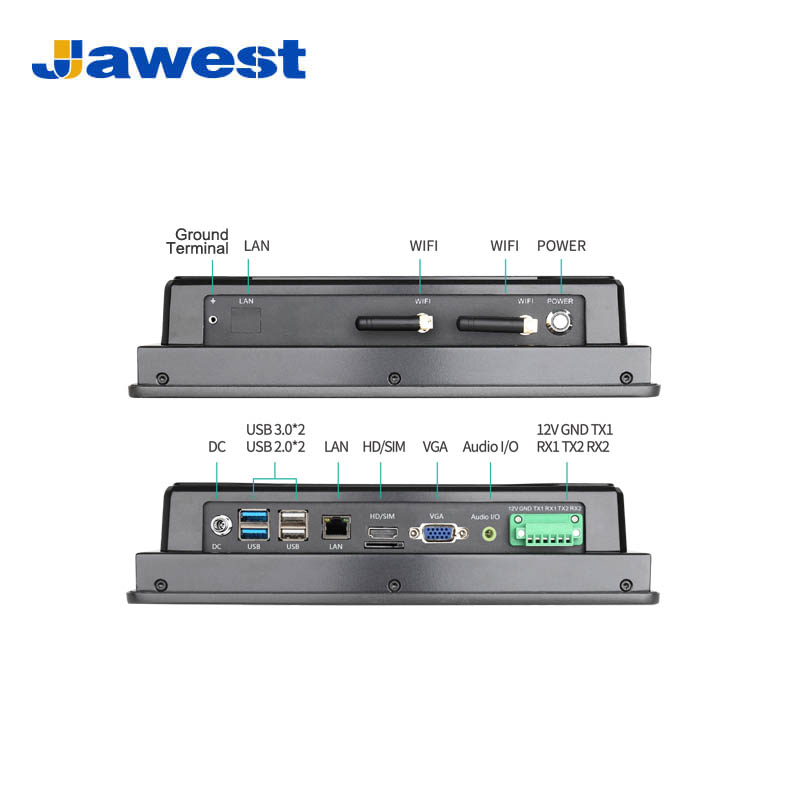

| I/O Ports | 1*12V DC_JACK input (ATX is optional) , 1*VGA,1*HDMI, 4*USB port | |||||||
| 1*RJ-45 network interface, 1*Audio I/O interface, 2*COM (can be customized, up to 4*COM) | ||||||||
| Power Input | AC 110-240V, 50/60Hz | |||||||
| Operation Temperature | -10°C-60°C | |||||||
| Storage Temperature | -30°C-60°C | |||||||
| Operation Humidity | 10%--80% | |||||||
| Storage Humidity | 10%-90% | |||||||
| Material | Aluminum alloy enclosure+High Strength Cold Rolled Steel | |||||||
| Front Bezel Thickness | 7mm (2nd-GEN 3mm bezel, 4th-GEN 10mm bezel optional) | |||||||
| IP Rating | IP65 standard seamless front | |||||||
| Color | Silver, Black | |||||||
| Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
| Certification | CE,FCC,ROHS,ISO | |||||||
| Packaging | EPE+Carton (wooden crate for mass order) | |||||||
