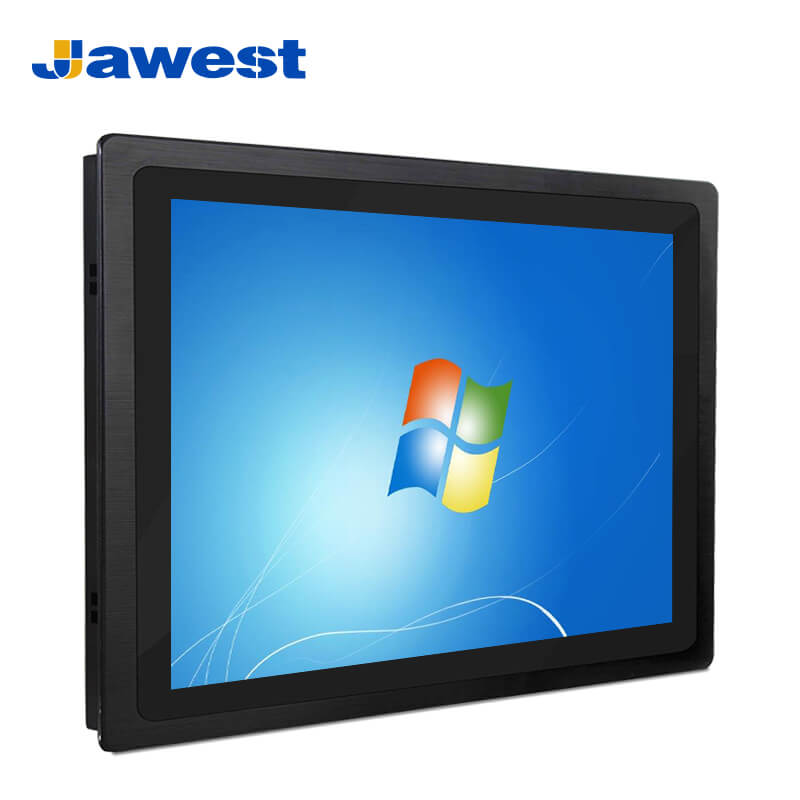

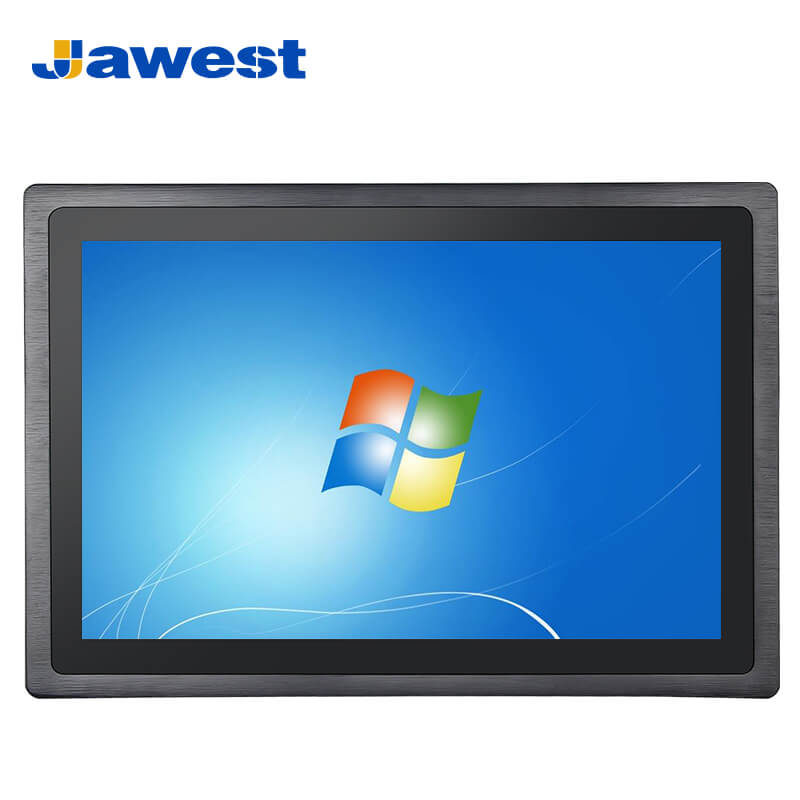

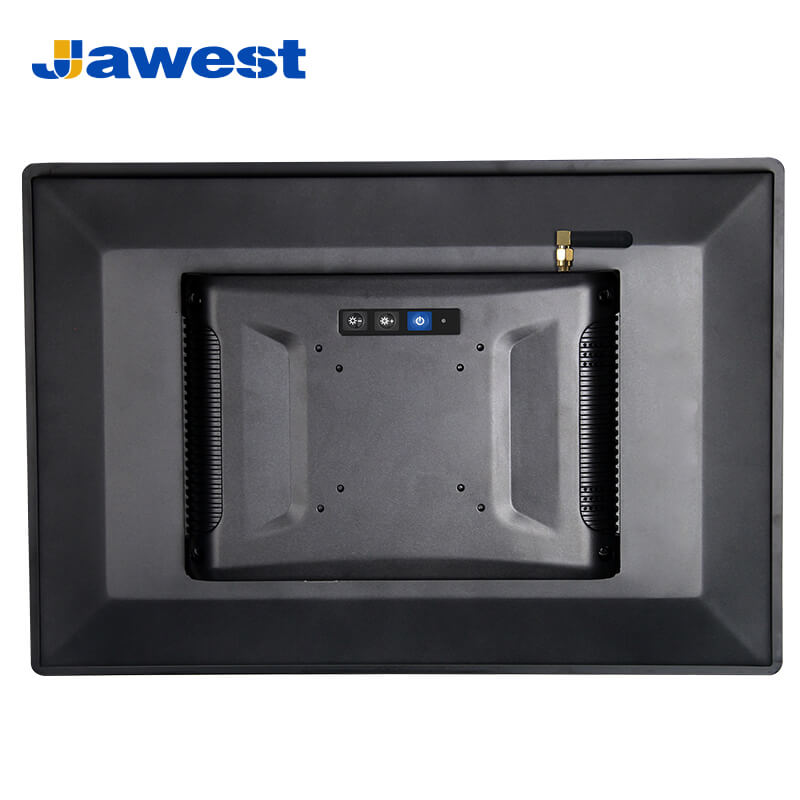

15.6 Inch Windows Industrial Panel PC For Industrial Control Machine Vision

15.6 Inch Windows Industrial Panel PC For Industrial Control Machine Vision

Model: JWS156-W2

● Display size: 15.6 inch.

● Working temperature: -10 ~ +60°C.

● Robust IP65-compliant aluminum alloy front bezel.

● 24/7 Long-time operation.

● Easy installation and easy maintenance.

● Built-in dustproof speakers and optional 4G/5G/WiFi/camera/RFID modules.

● Ultra-thin front bezel, suited for embedded mounting for cabinets, and industrial equipment.

Appearance of the color

Black

Silver

Description
Parameter
Case

15.6 Inch Windows Industrial Panel PC For Industrial Control & Machine Vision

Model: JWS156-W2

Jawest 15.6” industrial panel PC has scalable CPU options with the Intel® Core™ i7/i5/i3, Celeron® processors. The IP65-rated compliant surface protection, which comes with built-in speakers for multimedia applications, offers RFID, and NFC modules for customization items.

Product Features

• 3mm ultra-thin front bezel.

• Seamless panel design with IP65 standard dustproof and waterproof.

• Aluminum alloy enclosure, perfect design for fanless heat dissipation.

• Sunlight readable and Resistive & Capacitive & Non-touch options for the screen technology.

• Versatile I/O ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1, DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.

• Supports multi-installation methods, such as panel mount, open frame, wall-mounted, VESA, embedded, and countertop stand.

• Integrated modules option: NFC/IC/RFID/MSR/Camera/LTE module, etc.


Display Parameters	Size	15.6"
	Resolution	1920*1080
	Screen Ratio	16:9
	Brightness	300 nits (Optional high brightness)
	Contrast Ratio	800:1
	Viewing Angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		CL-J1900B	CX-J4125-A	CX-J6412	CX-12U01
					i3-1215U	i5-1235U	i7-1255U
System Architecture	CPU	Intel Celeron J1900 Quad-Core 2.0GHz	Intel Celeron J4125 Quad-Core 2.0GHz	Intel Celeron J6412 Quad-Core 2.0GHz	Intel Core i3 1215U 1.2GHz	Intel Core i5 1235U 1.3GHz	Intel Core i7 1255U 1.7GHz
	Architecture	Intel Bay Trail	Intel Gemini Lake Refresh	Intel Elkhart Lake	Intel Alder Lake
	GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs	Intel Iris Xe Graphics 64	Intel Iris Xe Graphics 80	Intel Iris Xe Graphics 96
	Memory	DDR3 8GB	DDR4 4/8GB	DDR4 8/16GB	DDR4 32GB
	Storage	16GB (optional: 32/64/128/256/512GB)	32GB (optional: 64/128/256/512GB, 1T/2T HDD)	32GB (optional: 64/128/256/512GB, 1T/2T HDD)	64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
	SATA	1*SATA3.0	1*SATA3.0	1*SATA3.0	1*SATA3.0
	MSATA	1*MSATA	1*MSATA	1*MSATA	/
	M.2	/	/	1*M.2	1*M.2
	Operating System	Win 7/10	Win 10/11	Win 10/11	Win 10/11
		Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04			/
		Centos7.4/7.8/7.9; Redhat7.4; Debian11.6	Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6		/

Networking	Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Support
	5G	/	/	/	M.2 5G
	WIFI	Dual-band 2.4/5GHz
	Bluetooth	BT4.0 (Optional)	BT4.0 (Optional)	BT4.0 (Optional)	BT4.0 (Optional)

Display Function	LVDS	Supports 1920*1080 60Hz output
	EDP	Supports 3840*2160 60Hz output	Supports 4096*2160 60Hz output		Supports 4096*2304 120Hz output
	VGA	Supports 1920*1080 60Hz output
	HDMI	Supports 3840*2160 30Hz output	Supports 4096*2160 30Hz output		Supports 4096*2304 60Hz output
Touch Function	Touch Interface	USB	USB	USB	USB
I/O Ports	USB 2.0	USB2.02 + USB2.04 on board	USB2.02 + USB2.04 on board	USB2.02 + USB2.02 on board	USB2.02 + USB2.04 on board
	Type-C	/	/	/	2*type-c
	USB 3.0	USB3.0*2	USB3.0*2	USB3.0*2	USB3.02 + USB3.02 on board (converted by 2*Type-C)
	RS232	6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
	RS485	1*RS232/RS422/RS485 mutual conversion
	RS422	1*RS232/RS422/RS485 mutual conversion
	TTL	/	/	/	/
	GPIO	GPIO*8 (input/output)
	SIM Slot	1SIM Slot + 1SIM Slot on board
	MINI PCIE	1*MINI PCIE	1*MINI PCIE	1*MINI PCIE	/
	Speaker	4PIN on board supports 8Ω5W	Built-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
	MIC	Support	Support	Support	Support
	Audio Port	3.5mm earphone jack, support input/output
	I/O Expansion	Support

Power	Power Input	12-36V DC	12-36V DC	12-36V DC	12-36V DC
	Adapter	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 4A

Mechanical	Dimension	42026970mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless	Fanless	Fanless	Fanless
	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65

3mm Windows PC Case
