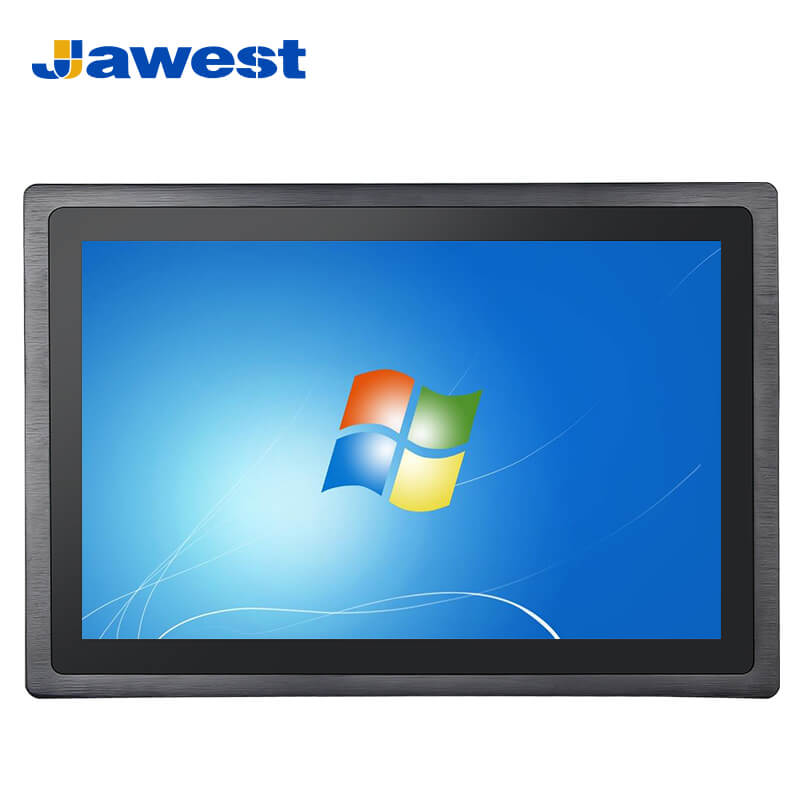

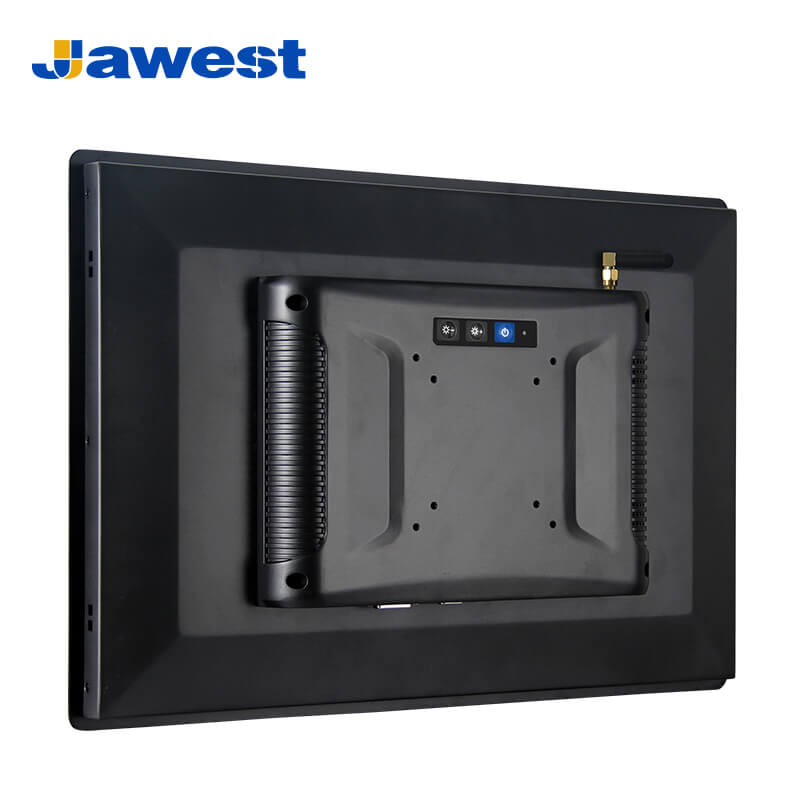

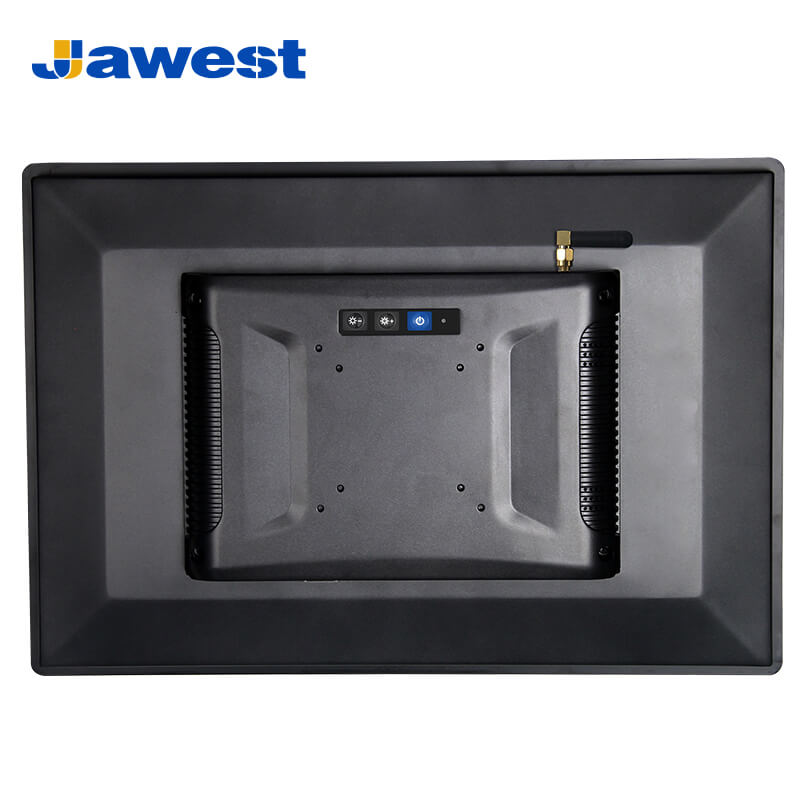

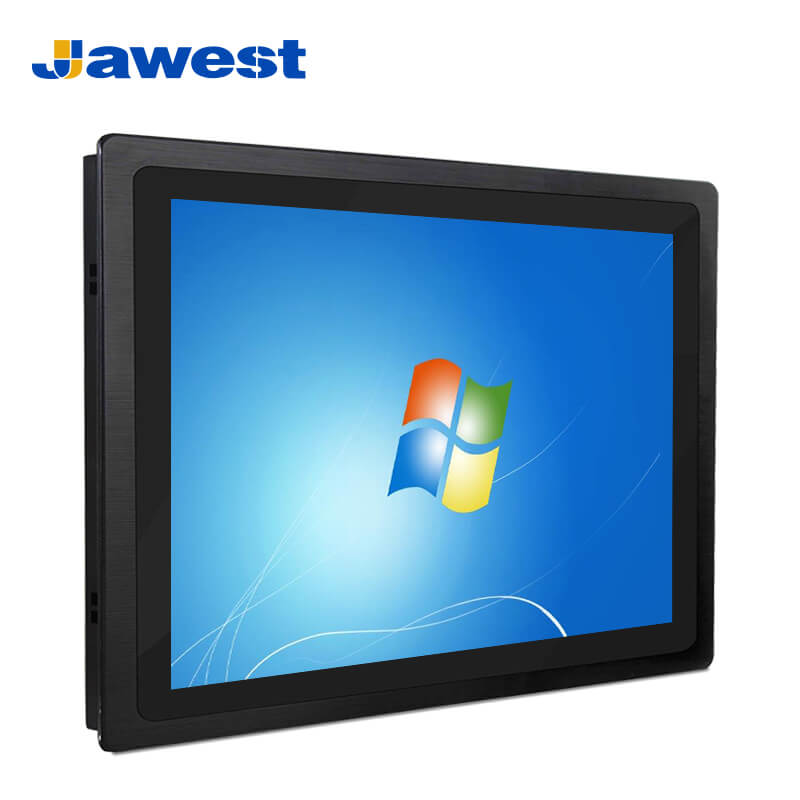

Industrial Tablet PC Windows 7 Win8 Win10 17.3 Inch 12 Volt DC Lockable Power Connectors


Model: JWS173-W2

● Display size: 17.3 inch.

● All-in-One design, elegant appearance, saving space.

● Aluminum alloy shell design, durable and sturdy.

● The front panel is only 3mm, very suitable for embedded installation.

● Mainstream interface design, supports customizable interface.

● High compatibility and adaptability in various industrial environments.

● Low-power chipset to save energy.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Industrial Tablet PC Windows 7 Win 8 Win10 17.3-inch


    Model: JWS173-W2


    Jawest 17.3-inch industrial tablet PC supports the Windows operating system ( Win7/Win8/Win10 ), and the widescreen monitor is also up to industrial grade. We offer OEM/ODM service for global customers.



    Product Features


    Various Display Sizes for Choosing

    Jawest is a professional manufacturer in the industrial tablet PC series, industrial monitor series, industrial all-in-one PC, embedded PC, etc. We support OEM and ODM for these products. The customization items include screen size, view angle, full waterproof/dustproof, wide temperature, wide voltage operation, etc.


    Industrial Design

    Jawest tablet PC with an industrial-grade driver board, it comes with a triple protection design, flame-proof, explosion-proof, and moisture-proof. Its front panel design: protection grade up to IP65 dust-proof and water-proof.


    Motherboard Design

    REALTEK brand industrial-grade display chip.


    Anti-interference

    Jawest industrial touch screen monitor with excellent anti-interference performance to EMI standard.


    Rich I/O Ports

    USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.


    Screen Brightness

    The brightness of the screen can be adjusted directly through OSD. The screen color won't be affected while adjusting the brightness.


    Working Temperature

    The working temperature is -10~60°C, It can be customized to -30 ~ +80°C.


    Anti-surge

    280V protection against surges, voltage instant raise 280V, neither the machine nor the adapter malfunctions.


    Anti-static

    Meet the industrial standard touch 4KV (the highest customizable 6KV); Meet the industry standard air 8KV (the highest customizable 16KV); High level of anti-static, can greatly reduce the failure rate of the machine.


    Anti-vibration

    The anti-vibration standard of Jawest industrial tablet PC is up to GB2423, and it will not be damaged or broken during transportation or in industrial and marine environments.






  • Display ParametersSize17.3"
    Resolution1920*1080
    Screen Ratio16:9
    Brightness400 nits (Optional high brightness)
    Contrast Ratio600:1
    Viewing Angle80°/80°/60°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support

    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension459*291*62mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
