Industrial Smart All-in-one touch computer user instructions

Overview

The industrial panel pc touch screen is specially designed for industrial needs. First-class design, rational construction, and metal material panel ensure solid and shock resistance. It’s widely used in military, electric power, industrial auto equipment, manufacturing and weather station, etc.

※ USB touch screen supports handwriting function realizing interactive function.

※ WIFI connection. The adjustable base bracket makes it more convenient to watch.

※ Three kinds of touch-typing: default resistive touch, infrared, and capacitive touch.

※ All the metallic(Alu-Alloy) enclosure sprayed with painting/Coating, enough to meet the industrial requirements.

※ Unique cooling fan to control temperature, ensure stable running and low failure rate.

※ Intel industry motherboard, adapt to the harsh environment, support 7/24 work.

※ Long working time, low power consumption design, supporting 7*24*365 workings.

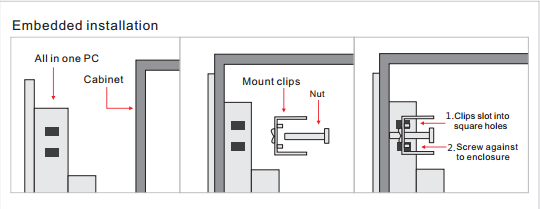

※ Variety of installations: desktop stand, wall-mounted, embedded and cantilever, etc.

Product Installation

Notices:

1.Please do not place the all in one PC besides the radiator or heat source.

2.Please, do not let any objects press or twine around the power cable or VGA cable.

3.Please do not place the all in one PC near to water source or humid placement.

4. Please do not block off the back vents which can dissipate heat generated inside to prevent damage of components.

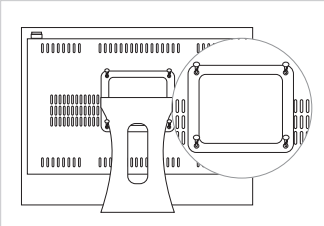

Installation for desktop: Checking that there are four screw holes on the backside of the PC, then place the screw hole in the right position with the PC and twist the screws, the installation finished. (All same with the louver bracket, foldable bracket, and wall-mounted bracket.)

Customization services

We have rich experience and product resources in the industrial automation industry, during the process of different customization requirements for customers, having built a strong team on design and development for customized service. We're able to translate customer's ideas and requirements into real solutions.
