Application:
Rack Mount Industrial MonitorRack Mount Industrial MonitorRack Mount Industrial MonitorRack Mount Industrial MonitorRack Mount Industrial Monitor

Rack Mount Industrial Monitor


● High level anti-static

● High quality industrial LCD panel

● Working temperature:-10-60°

● Industrial grade display chip

10mm enhanced display panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Rack Mount Industrial Monitor


    IP65 grade water-proof,dust-proof for front panel.

    Days*24hours all-weather working.

    Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.

    Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.

    Compatible with various industrial systems/application.

    Support without touch,resistive touch,capacitive touch,IR touch.

    Whole system is equipped with WI-FI module,more convennient.

    Build-in 2.0 speakers,support 1080P HD video.

    Complete machine triple protection:explosion-proof, flameproof, moisture-proof.

    Shock resistance standard reach GB2423,protection during transportation/working on the sea.

    Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).

    Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.

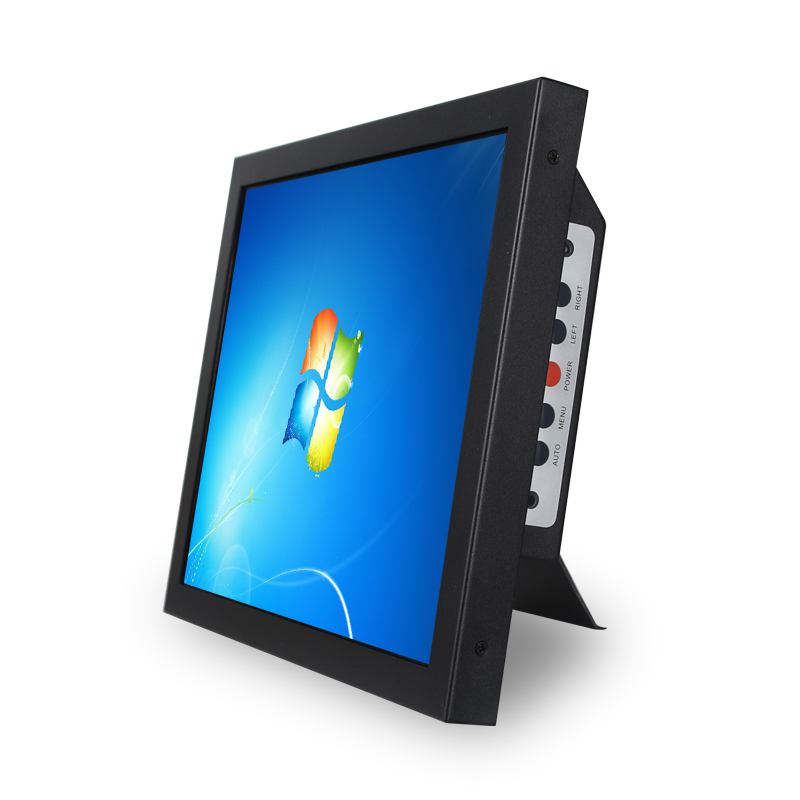

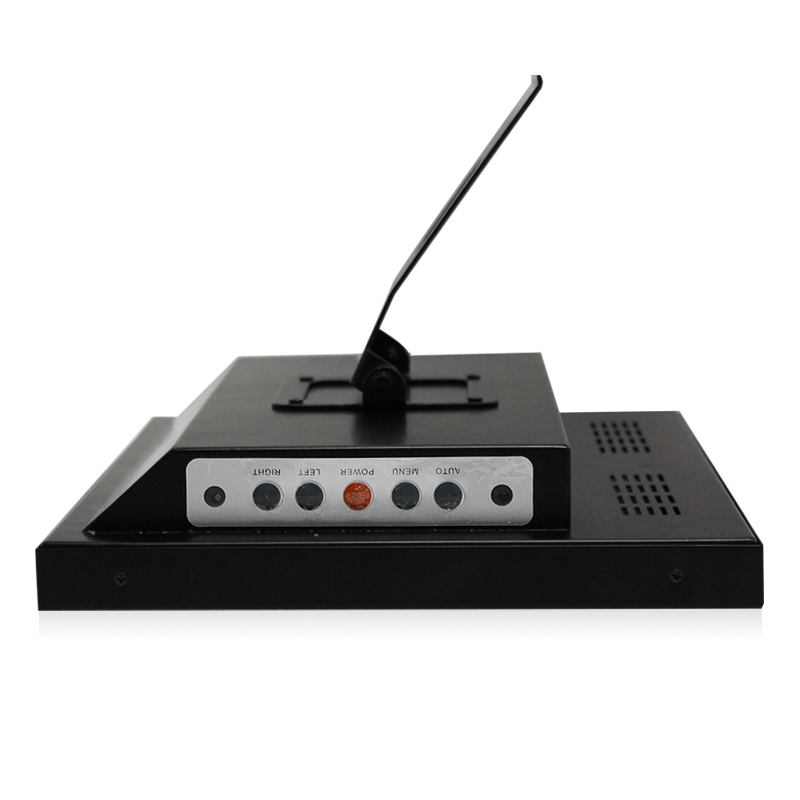

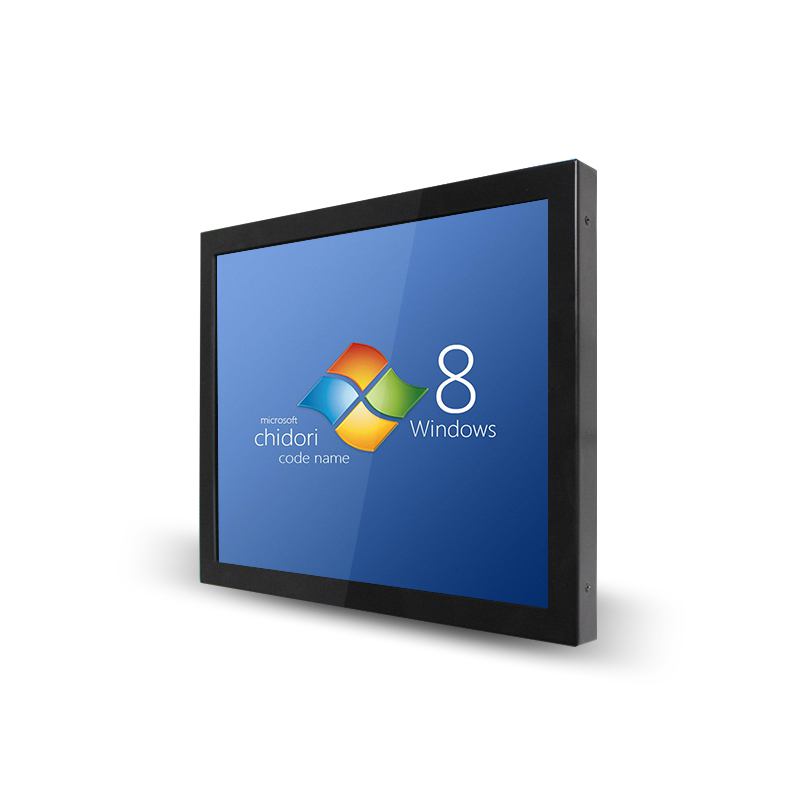

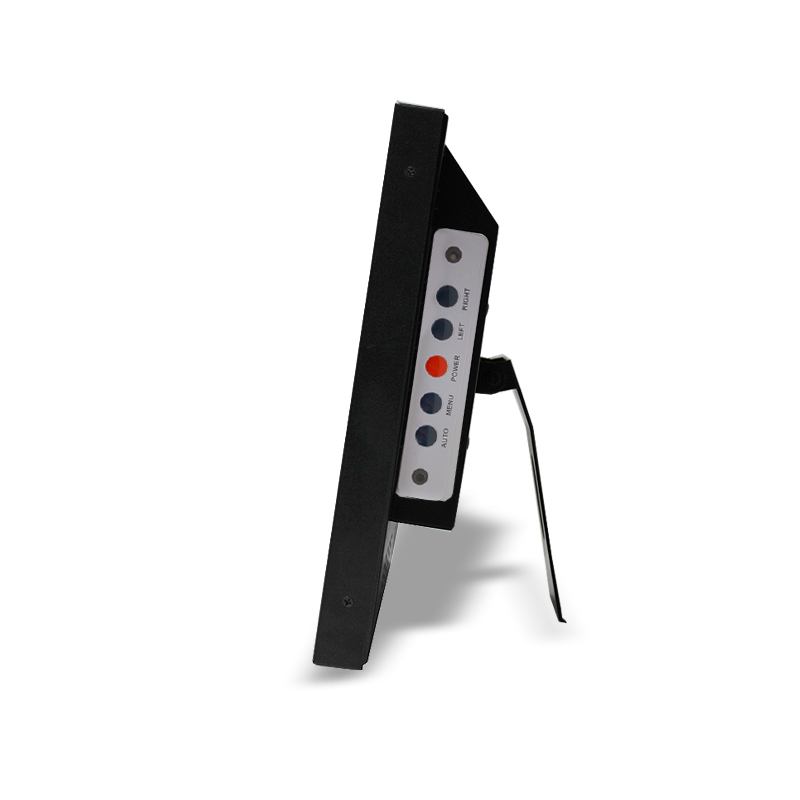

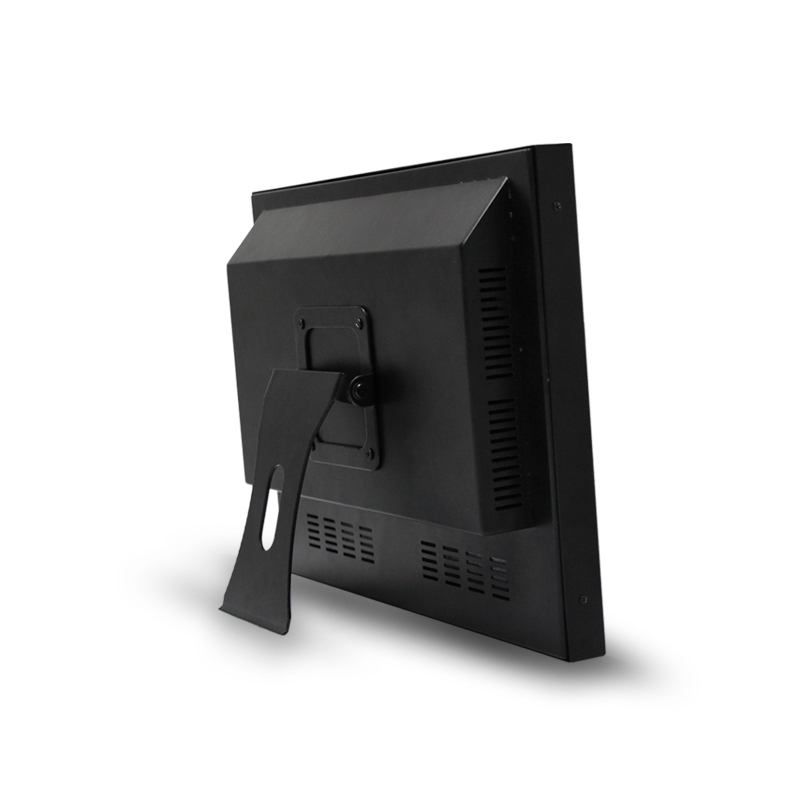

    10mm Industrial Desktop Display

    10mm Industrial Desktop Display

    10mm Industrial Desktop Display


  • Touch Monitor Datasheet
    Size10.1inch12inch15inch17inch19inch19inch wide21.5inch
    Display
    Panel Type Industrial LCD panel A+ grade
    Aspect Ratio16:94:34:34:34:316:1016:9
    Resolution1366*768800*600 or
    1024*768
    1024*7681280*10241280*10241440*9001920*1080
    Contrast800:1800:11000:11000:11000:11000:11000:1
    Luminance250nit-1000nit250nit-1500nit250nit-1500nit250nit-1500nit250nit-1500nit250nit-1500nit250nit-1500nit
    Response time5ms5ms5ms5ms5ms5ms5ms
    Active Area (mm)227*131250*188.4305.8*229.8341.5*274383*308414.3*262.5478*269.24
    Display colors16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)
    View angle80/80/80/8075/75/75/7575/75/75/7575/75/75/7585/85/85/8585/85/85/8589/89/89/89
    Touch Screen5 wire resistive touch screen/10-point capacitive touch screen/ Dual Infrared touch
    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-50°C
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel, 10mm bezel(optional)
    IP ratingIP65 for front Panel

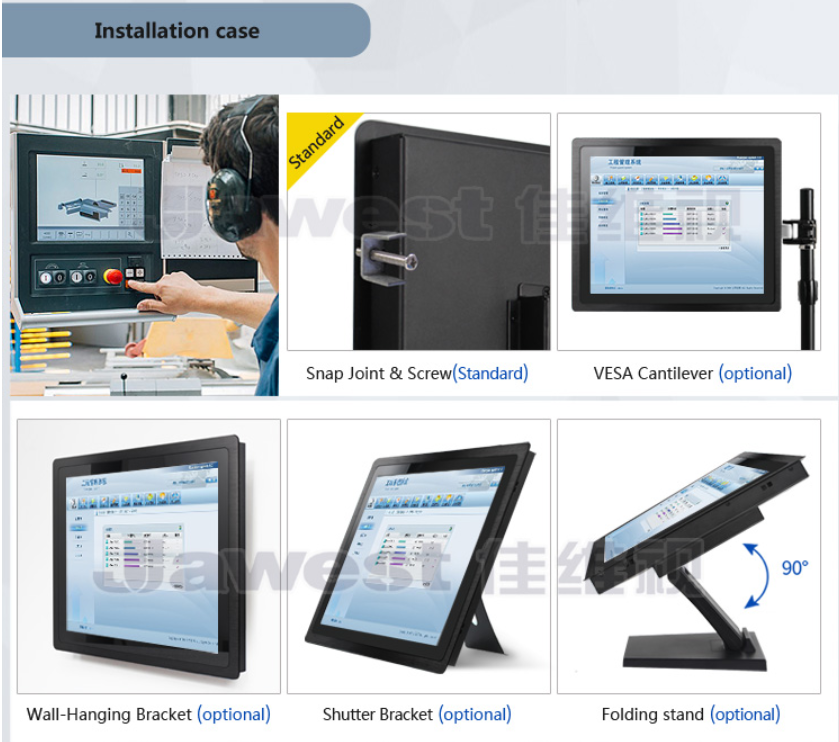

    InstallationVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE,CCC,ISO,FCC,ROHS
    PackageEPE+Carton  (wooden crate for mass order)
